15-01-2004
| #1 |
| CD Freaks Senior Member Join Date: Jul 2002
Posts: 401
| RiTEK DVD+R Hi! I burned some PLATINUM 4x DVD+R with my NEC ND-2500A @ 4x (FW 1.06): Media Information: ============= Region information N/A not a DVD-VIDEO Media code/Manufacturer ID RITEK R02 Format Capacity Not Formatted Free Blocks 405405696 Free Capacity 4.38GB(4.70GB) Book Type DVD+R Media Type DVD+R Media Id Code Speed 4.0x 5540KBps Available Write Descriptor CLV 4.0x 5540KBps Available Write Descriptor CLV 2.4x 3324KBps Linear Density Blank Disc Track Density Unknown Number of Layers 1 Media Code: ========= 00000000 01 02 00 00 A1 0F 02 00 00 03 00 00 00 26 05 3F .............&.? 00000010 00 00 00 00 00 00 01 52 49 54 45 4B 00 00 00 52 .......RITEK...R 00000020 30 32 01 38 23 54 37 09 00 3C 65 00 A0 5F 14 14 02.8#T7..<e.._.. 00000030 0A 0A 0A 0A 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................ Tested with JLMS 166S @ 4x to 9x CAV, ECC = 8 blocks. Legnerp Last edited by Legnerp; 17-02-2004 at 03:23.. |
|  |
|
15-01-2004
| #2 |
| CDFreaks Resident  Join Date: Jan 2004 Location: liteonia
Posts: 556
| Ritek DVD+R 4x burned at ? NEC ND-1300A fw 1.08v2 *hacked* (with booktype setting ) Media Info: ============= Code: Disc Regions are 1,2,3,4,5,6,7,8 Media code/Manufacturer ID RITEK R02 Format Type UDF 1.02 Volume Name SOUTH_PARK Application id Implementation id UDF Toshiba DVD Video Recording Date/Time (mm/dd/yyyy) 1/28/2000 23:27:25 Format Capacity 3.94GB(4.23GB) Book Type DVD-ROM Media Type DVD+R Media Id Code Speed 4.0x 5540KBps Data area starting sector 30000h Data area end sector 1F807Fh Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 ======== Code: 00000000 08 02 00 00 01 0F 02 00 00 03 00 00 00 22 80 7F .............".. 00000010 00 00 00 00 00 00 01 52 49 54 45 4B 00 00 00 52 .......RITEK...R 00000020 30 32 01 38 23 54 37 09 00 3C 65 00 A0 5F 14 14 02.8#T7..<e.._.. 00000030 0A 0A 0A 0A 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................ Tested wit JLMS 165H @ 8x max and 8 blocks ECC Overall nice media, I can get them pretty cheap (1.59 euro per disc) Good scratch resistance, which is important to me, as my family always scratches all my discs up  .Last edited by rdgrimes; 15-01-2004 at 23:46.. |
|
| |
|
09-02-2004
| #3 |
| New on Forum Join Date: Feb 2004
Posts: 1
| RITEK R01 2.4x Media Burned at 8x LiteOn LDW-811S HS0P (Hacked) Only hack from standard HS0P is changing RITEK R01 Burn Speeds entry from 02 to 1E. Media Info: ========= Code: Media Information Disc Regions are 1,2,3,4,5,6,7,8 Media code/Manufacturer ID RITEK R01 Format Type UDF 1.02 Volume Name BABY_EINSTEIN Application id Implementation id Daikin U.S. Comtec Lab Recording Date/Time (mm/dd/yyyy) 3/ 7/2003 8:01:16 Format Capacity 4.13GB(4.43GB) Book Type DVD+R Media Type DVD+R Media Id Code Speed 2.4x 3324KBps Available Write Descriptor CLV 8.0x 11080KBps Available Write Descriptor CLV 6.0x 8310KBps Available Write Descriptor CLV 4.0x 5540KBps Available Write Descriptor CLV 2.4x 3324KBps Data area starting sector 30000h Data area end sector 21092Fh Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 ========= Code: 0000 : a1 0f 02 00 00 03 00 00 00 24 09 2f 00 00 00 00 .........$./.... 0010 : 00 00 00 52 49 54 45 4b 00 00 00 52 30 31 01 38 ...RITEK...R01.8 0020 : 23 54 37 09 00 5a 65 00 ac 5f 14 14 0a 0a 0a 0a #T7..Ze.._...... 0030 : 01 19 1b 0b 0b 0e 0f 01 00 00 00 00 00 00 00 00 ................ Scan carried out on the same LDW-811S w/HS0P that it was burnt on @ 4x, 8ECC - I don't have any other LiteOn drives to try it on. However it plays OK on my Panasonic LV-75 and reads OK on my Ricoh MP5125A. Interested in anyone else's experience with burning this media at 8x. |
|
| |
|
17-02-2004
| #4 |
| CD Freaks Senior Member Join Date: Jul 2002
Posts: 401
| Ritek DVD+R 4x burned at 4x Plextor PX-708A (FW1.04) Media Information: ============= Region information N/A not a DVD-VIDEO Media code/Manufacturer ID RITEK R02 Format Capacity 4.37GB(4.69GB) Book Type DVD+R Media Type DVD+R Media Id Code Speed 4.0x 5540KBps Available Write Descriptor CLV 8.0x 11080KBps Available Write Descriptor CLV 4.0x 5540KBps Available Write Descriptor CLV 2.4x 3324KBps Data area starting sector 30000h Data area end sector 22F05Fh Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 Media Code: ========= 00000000 08 02 00 00 A1 0F 02 00 00 03 00 00 00 25 F0 5F .............%._ 00000010 00 00 00 00 00 00 01 52 49 54 45 4B 00 00 00 52 .......RITEK...R 00000020 30 32 01 38 23 54 37 09 00 3C 65 00 A0 5F 14 14 02.8#T7..<e.._.. 00000030 0A 0A 0A 0A 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................ This media is sold as PLATINUM 4x. Tested with JLMS 166S @ 4x to 9x CAV, ECC = 8 blocks. Legnerp Last edited by Legnerp; 17-02-2004 at 14:22.. |
|
| |
|
29-02-2004
| #5 |
| New on Forum Join Date: May 2002 Location: Tallinn Estonia
Posts: 3
| Ritek DVD+R 4x burned at 4x Liteon 451@851 GS0C Media Information ----------------------------------------------------------------------------------- Region information N/A not a DVD-VIDEO Media code/Manufacturer ID RITEK R02 Format Capacity 4.37GB(4.69GB) Book Type DVD+R Media Type DVD+R Media Id Code Speed 4.0x 5540KBps Available Write Descriptor CLV 4.0x 5540KBps Available Write Descriptor CLV 2.4x 3324KBps Data area starting sector 30000h Data area end sector 22F35Fh Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 ----------------------------------------------------------------------------------- Full media code ----------------------------------------------------------------------------------- 08 02 00 00 A1 0F 02 00 00 03 00 00 00 25 F3 5F .............%._ 00 00 00 00 00 00 01 52 49 54 45 4B 00 00 00 52 .......RITEK...R 30 32 01 38 23 54 37 09 00 3C 65 00 A0 5F 14 14 02.8#T7..<e.._.. 0A 0A 0A 0A 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................ ----------------------------------------------------------------------------------- Medium sold as Platinum DVD+R  |
|
| |
|
11-03-2004
| #6 |
| CD Freaks Junior Member Join Date: Jan 2004
Posts: 74
| Ritek DVD+R 2.4x burned at 2.4x Lite-On 411s @ 811s Burned @ 2.4x Media Information Disc Regions are 1,2,3,4,5,6,7,8 Media code/Manufacturer ID RITEK R01 Format Type UDF 1.02 Volume Name PASSION_CHRIST Application id Prassi Implementation id Prassi Recording Date/Time (mm/dd/yyyy) 3/10/2004 2:46:26 Format Capacity 4.04GB(4.33GB) Book Type DVD-ROM Media Type DVD+R Media Id Code Speed 2.4x 3324KBps Data area starting sector 30000h Data area end sector 204ADFh Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 00000000 08 02 00 00 01 0F 01 00 00 03 00 00 00 23 4A DF .............#J. 00000010 00 00 00 00 00 00 00 52 49 54 45 4B 00 00 00 52 .......RITEK...R 00000020 30 31 01 38 23 54 37 09 00 5A 65 00 AC 5F 14 14 01.8#T7..Ze.._.. 00000030 0A 0A 0A 0A 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................ Is this Good??? Last edited by Nuke209; 11-03-2004 at 19:47.. |
|
| |
|
11-03-2004
| #7 |
| CD Freaks Junior Member Join Date: Jan 2004
Posts: 74
| Ritek DVD+R 2.4x burned at 4x Lite-On 411s @ 811s Burned @ 4x Media Information Disc Regions are 1,2,3,4,5,6,7,8 Media code/Manufacturer ID RITEK R01 Format Type UDF 1.02 Volume Name PASSION_CHRIST Application id Prassi Implementation id Prassi Recording Date/Time (mm/dd/yyyy) 3/10/2004 2:46:26 Format Capacity 4.04GB(4.33GB) Book Type DVD-ROM Media Type DVD+R Media Id Code Speed 2.4x 3324KBps Data area starting sector 30000h Data area end sector 204ADFh Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 00000000 08 02 00 00 01 0F 01 00 00 03 00 00 00 23 4A DF .............#J. 00000010 00 00 00 00 00 00 00 52 49 54 45 4B 00 00 00 52 .......RITEK...R 00000020 30 31 01 38 23 54 37 09 00 5A 65 00 AC 5F 14 14 01.8#T7..Ze.._.. 00000030 0A 0A 0A 0A 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................ BTW, both of my burns are burned with HS0P Last edited by Nuke209; 11-03-2004 at 19:48.. |
|
| |
|
13-03-2004
| #8 |
| CD Freaks Rookie Join Date: Sep 2003
Posts: 39
| Liteon 401s@811s The media is sold as Platinum 4x. Burned at 4x Media Information Region information N/A not a DVD-VIDEO Media code/Manufacturer ID RITEK R02 Format Capacity 1.70GB(1.83GB) Book Type DVD+R Media Type DVD+R Media Id Code Speed 4.0x 5540KBps Available Write Descriptor CLV 4.0x 5540KBps Available Write Descriptor CLV 2.4x 3324KBps Data area starting sector 30000h Data area end sector DA02Fh Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 08 02 00 00 A1 0F 02 00 00 03 00 00 00 10 A0 2F .............../ 00 00 00 00 00 00 01 52 49 54 45 4B 00 00 00 52 .......RITEK...R 30 32 01 38 23 54 37 09 00 3C 65 00 A0 5F 14 14 02.8#T7..<e.._.. 0A 0A 0A 0A 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................  The scan was taken at standard 4x 8ECC |
|
| |
|
01-04-2004
| #9 |
| Retired Moderator Join Date: Jun 2002 Location: Deadwood
Posts: 11,441

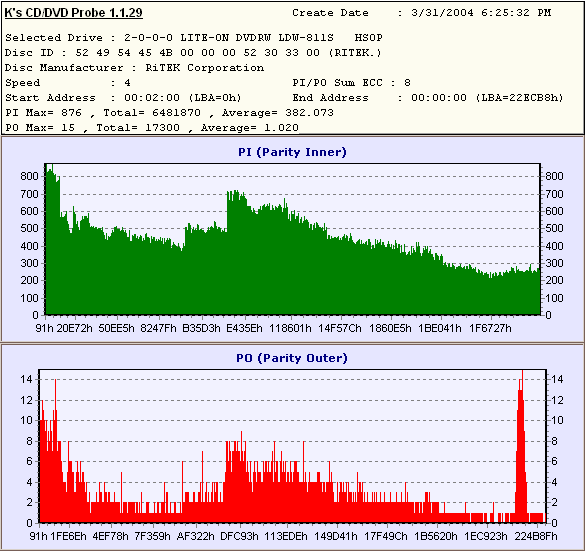

| Ritek R03 DVD+R 8x burned at 8x LiteOn 401@811 HS0P speed-mod firmware, 4.4GB movie Media Information Region information N/A not a DVD-VIDEO Media code/Manufacturer ID RITEK R03 Format Type UDF 1.02 Volume Name COOK Application id Implementation id AHEAD Nero Recording Date/Time (mm/dd/yyyy) 3/31/2004 18:01:43 Format Capacity 4.37GB(4.69GB) Book Type DVD+R Media Type DVD+R Media Id Code Speed 8.0x 11080KBps Available Write Descriptor CLV 8.0x 11080KBps Available Write Descriptor CLV 6.0x 8310KBps Available Write Descriptor CLV 4.0x 5540KBps Available Write Descriptor CLV 2.4x 3324KBps Data area starting sector 30000h Data area end sector 22ECEFh Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 08 02 00 00 A1 0F 02 00 00 03 00 00 00 25 EC EF .............%.. 00 00 00 00 00 00 03 52 49 54 45 4B 00 00 00 52 .......RITEK...R 30 33 02 38 23 54 37 09 00 3C 65 00 A0 5F 14 14 03.8#T7..<e.._.. 0A 0A 0A 0A 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................ Sold as generic Ridata 8x +R scanned at 4x, ECC sum-8  |
|
| |
|
01-04-2004
| #10 |
| Retired Moderator Join Date: Jun 2002 Location: Deadwood
Posts: 11,441

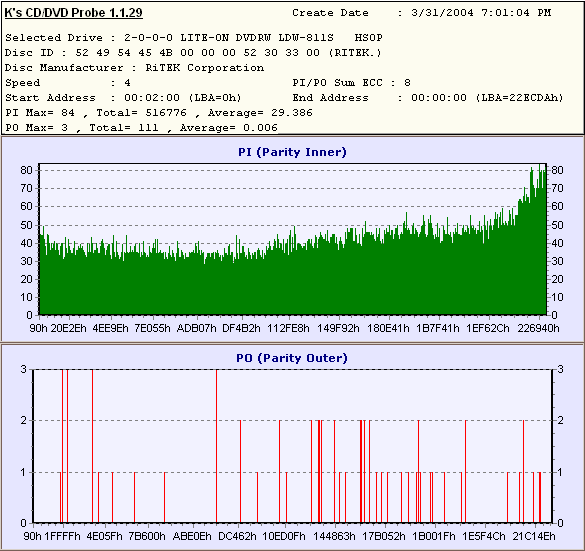

| Ritek R03 DVD+R 8x burned at 4x NEC 2500A, 1.06 F/W 4.4GB movie Media Information Region information N/A not a DVD-VIDEO Media code/Manufacturer ID RITEK R03 Format Type UDF 1.02 Volume Name COOK Application id Implementation id AHEAD Nero Recording Date/Time (mm/dd/yyyy) 3/31/2004 18:13:36 Format Capacity 4.37GB(4.69GB) Book Type DVD+R Media Type DVD+R Media Id Code Speed 8.0x 11080KBps Available Write Descriptor CLV 4.0x 5540KBps Available Write Descriptor CLV 2.4x 3324KBps Data area starting sector 30000h Data area end sector 22ECEFh Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 08 02 00 00 A1 0F 02 00 00 03 00 00 00 25 EC EF .............%.. 00 00 00 00 00 00 03 52 49 54 45 4B 00 00 00 52 .......RITEK...R 30 33 02 38 23 54 37 09 00 3C 65 00 A0 5F 14 14 03.8#T7..<e.._.. 0A 0A 0A 0A 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................ Sold as generic Ridata DVD+R 8x Scanned at 4x, ECC sum-8 The 2500 does not yet support this media, and so is likely using R02 strategy for burning it.  Last edited by rdgrimes; 03-04-2004 at 21:48.. |
|
| |
|
01-04-2004
| #11 |
| Retired Moderator Join Date: Jun 2002 Location: Deadwood
Posts: 11,441

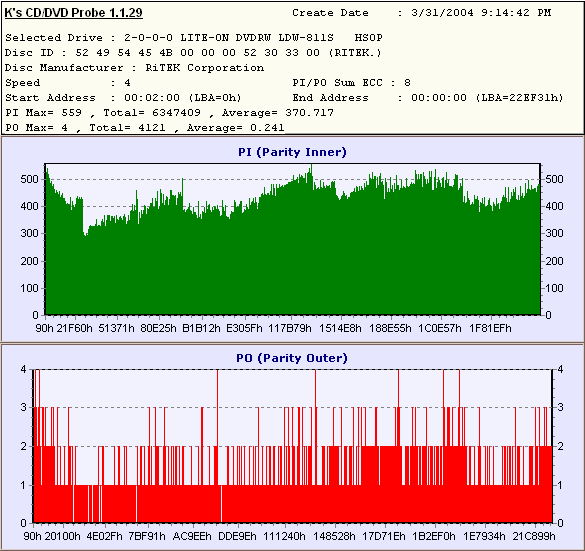

| Ritek R03 DVD+R 8x burned at 4x Pioneer 106D F/W 1.07 4.4GB movie Media Information Region information N/A not a DVD-VIDEO Media code/Manufacturer ID RITEK R03 Format Type UDF 1.02 Volume Name WONDERLAND Application id Implementation id AHEAD Nero Recording Date/Time (mm/dd/yyyy) 3/31/2004 20:03:47 Format Capacity 4.37GB(4.69GB) Book Type DVD+R Media Type DVD+R Media Id Code Speed 8.0x 11080KBps Available Write Descriptor CLV 4.0x 5540KBps Available Write Descriptor CLV 2.4x 3324KBps Data area starting sector 30000h Data area end sector 22EFAFh Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 08 02 00 00 A1 0F 02 00 00 03 00 00 00 25 EF AF .............%.. 00 00 00 00 00 00 03 52 49 54 45 4B 00 00 00 52 .......RITEK...R 30 33 02 38 23 54 37 09 00 3C 65 00 A0 5F 14 14 03.8#T7..<e.._.. 0A 0A 0A 0A 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................ Sold as Ridata generic 8x DVD+R Scanned at 4x ECC sum-8  |
|
| |
|
16-04-2004
| #12 |
| CDFreaks Resident  Join Date: Jan 2004 Location: .us
Posts: 5,923
| Ritek DVD+R 2.4x burned at 8x LiteOn LDW-451S@851S, GS0F (speedhacked), 4.17GB data disc Code: Media Information Region information N/A not a DVD-VIDEO Media code/Manufacturer ID RITEK R01 Format Capacity 4.17GB(4.48GB) Book Type DVD-ROM Media Type DVD+R Media Id Code Speed 2.4x 3324KBps Data area starting sector 30000h Data area end sector 2159DFh Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 -------------------------------------------------------------------------- 0000 : 01 0f 01 00 00 03 00 00 00 24 59 df 00 00 00 00 .........$Y..... 0010 : 00 00 00 52 49 54 45 4b 00 00 00 52 30 31 01 38 ...RITEK...R01.8 0020 : 23 54 37 09 00 5a 65 00 ac 5f 14 14 0a 0a 0a 0a #T7..Ze.._...... 0030 : 01 19 1b 0b 0b 0e 0f 01 00 00 00 00 00 00 00 00 ................ Burn speed: 8x Software: Nero 6.3.1.6 Misc: Booktype set to DVD-ROM Comments: First, this is probably not the best disc to overspeed with. I accidentally dropped the disc prior to burning, and that drop plus my subsequent attempt to wipe off the dust created a few scratches. Nor was I ever able to get all of the dust off (after a certain point, each wipe adds as much dust as it removes). Reads fine in my burner (verifies okay), but somehow, my 48161 doesn't recognize the disc. So right now, it looks as if overspeeding the RITEKR01 to 8x is a bad idea (it IS a 2.4x-rated disc...); it doesn't seem to work nearly as well as the RICOHJPNR00. Will retest later with a better (undropped) disc, and will also run some tests at 4x and 6x. Finally, it seems as if there may be some dye unevenness on the disc. There is an area of the disc (in the shape of a ring) that seems a wee bit darker than the rest, both burned and unburned. Oh, and the dye color is much darker than the Ricoh light purple (it's more along the lines of the G04's dark purple). So it may be the same manufacturer, but it's not the same dye. Edit: recognizes & reads just fine in my laptop's 24082K slim combo. Why my 48161H doesn't like it is beyond me.
__________________ "You don't have to be a supporter of freedom of speech to protest when your own ox is being gored. You do have to be a supporter of freedom of speech to protest when the government tries to censor the speech of those who are goring your ox." -Alan M. Dershowitz LiteOn Stuff: LiteOn F.A.Q. | OmniPatcher | DVD-Writer Overview | Changing Write Strategies | Crossflashing | XFlash Utility General Stuff: DVD-Writer F.A.Q. | Rules of the Optical Drive Forums | Attaching Scans | The rpc1.org Firmware Database Code Guys: http://codeguys.rpc1.org/ | send us e-mail I Use: Firefox + QuickDrag + NoRedirect + URL Flipper | Winamp | CmdOpen Shell Extension | HashCheck Shell Extension C64K: My Travel Photos | In Retirement...  Last edited by code65536; 16-04-2004 at 02:15.. |
|
| |
|
18-04-2004
| #13 |
| CDFreaks Resident Join Date: Jan 2004 Location: .us
Posts: 5,923
| Ritek DVD+R 2.4x burned at 6x LiteOn LDW-451S@851S, GS0F (speedhacked), 2.02GB data disc Code: Media Information Region information N/A not a DVD-VIDEO Media code/Manufacturer ID RITEK R01 Format Capacity 2.02GB(2.17GB) Book Type DVD-ROM Media Type DVD+R Media Id Code Speed 2.4x 3324KBps Data area starting sector 30000h Data area end sector 1030DFh Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 -------------------------------------------------------------------------- 0000 : 01 0f 01 00 00 03 00 00 00 24 59 df 00 00 00 00 .........$Y..... 0010 : 00 00 00 52 49 54 45 4b 00 00 00 52 30 31 01 38 ...RITEK...R01.8 0020 : 23 54 37 09 00 5a 65 00 ac 5f 14 14 0a 0a 0a 0a #T7..Ze.._...... 0030 : 01 19 1b 0b 0b 0e 0f 01 00 00 00 00 00 00 00 00 ................ Burn speed: 6x Software: Nero 6.3.1.6 Misc: Booktype set to DVD-ROM Comments: Note the small size of this burn. Unlike the previous burn, this one reads fine on my combo.
__________________ "You don't have to be a supporter of freedom of speech to protest when your own ox is being gored. You do have to be a supporter of freedom of speech to protest when the government tries to censor the speech of those who are goring your ox." -Alan M. Dershowitz LiteOn Stuff: LiteOn F.A.Q. | OmniPatcher | DVD-Writer Overview | Changing Write Strategies | Crossflashing | XFlash Utility General Stuff: DVD-Writer F.A.Q. | Rules of the Optical Drive Forums | Attaching Scans | The rpc1.org Firmware Database Code Guys: http://codeguys.rpc1.org/ | send us e-mail I Use: Firefox + QuickDrag + NoRedirect + URL Flipper | Winamp | CmdOpen Shell Extension | HashCheck Shell Extension C64K: My Travel Photos | In Retirement... |
|
| |
|
21-04-2004
| #14 |
| CDFreaks Resident Join Date: Jan 2004 Location: .us
Posts: 5,923
| Ritek DVD+R 2.4x burned at 6x LiteOn LDW-451S@851S, GS0F (speedhacked), 4.30GB movie Code: LITE-ON DVDRW LDW-851S GS0F Current Profile: DVD+R Disc Information: Status: Complete Erasable: No Sessions: 1 Sectors: 2,253,488 Size: 4,615,143,424 bytes Time: 500:48:38 (MM:SS:FF) Supported Write Speeds: 2.4x, 4x, 6x Physical Format Information (Last Recorded): Disc ID: RITEK-R01-01 Book Type: DVD-ROM Part Version: 1 Disc Size: 120mm Maximum Read Rate: Not Specified Number of Layers: 1 Track Path: Parallel Track Path (PTP) Linear Density: 0.267 um/bit Track Density: 0.74 um/track -------------------------------------------------------------------------- 0000 : 01 0f 01 00 00 03 00 00 00 25 62 af 00 00 00 00 .........%b..... 0010 : 00 00 00 52 49 54 45 4b 00 00 00 52 30 31 01 38 ...RITEK...R01.8 0020 : 23 54 37 09 00 5a 65 00 ac 5f 14 14 0a 0a 0a 0a #T7..Ze.._...... 0030 : 01 19 1b 0b 0b 0e 0f 01 00 00 00 00 00 00 00 00 ................ Burn speed: 6x Software: DVD Decrypter 3.2.1.0 Misc: Booktype set to DVD-ROM Comments: Finally got a chance to do a full-sized burn at 6x. Works fine.
__________________ "You don't have to be a supporter of freedom of speech to protest when your own ox is being gored. You do have to be a supporter of freedom of speech to protest when the government tries to censor the speech of those who are goring your ox." -Alan M. Dershowitz LiteOn Stuff: LiteOn F.A.Q. | OmniPatcher | DVD-Writer Overview | Changing Write Strategies | Crossflashing | XFlash Utility General Stuff: DVD-Writer F.A.Q. | Rules of the Optical Drive Forums | Attaching Scans | The rpc1.org Firmware Database Code Guys: http://codeguys.rpc1.org/ | send us e-mail I Use: Firefox + QuickDrag + NoRedirect + URL Flipper | Winamp | CmdOpen Shell Extension | HashCheck Shell Extension C64K: My Travel Photos | In Retirement... |
|
| |
|
25-04-2004
| #15 |
| New on Forum  Join Date: Feb 2004 Location: Somewhere in the midwest
Posts: 23
| RiTek RiData 4x DVD +R burned @ 8x Burner: LiteOn 451S@851S (Speedhacked) GSOF, 4.38GB Movie Media Info: Code: Media Information Region information N/A not a DVD-VIDEO Media code/Manufacturer ID RITEK R03 Media Product Revision Number 02h Free Blocks 405405696 Free Capacity 4.38GB(4.70GB) Book Type DVD+R Media Type DVD+R Media Id Code Speed 8.0x 11080KBps Available Write Descriptor CLV 8.0x 11080KBps Available Write Descriptor CLV 6.0x 8310KBps Available Write Descriptor CLV 4.0x 5540KBps Available Write Descriptor CLV 2.4x 3324KBps Data area starting sector 30000h Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 Code: 00000000 08 02 00 00 A1 0F 02 00 00 03 00 00 00 26 05 3F .............&.? 00000010 00 00 00 00 00 00 03 52 49 54 45 4B 00 00 00 52 .......RITEK...R 00000020 30 33 02 38 23 54 37 09 00 3C 65 00 A0 5F 14 14 03.8#T7..<e.._.. 00000030 0A 0A 0A 0A 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................ Scanned using 4x/8ECC settings. Burned at 8x using DVD Decrypter 3.2.1.0
__________________ Secondary IDE Channel M: LiteON 52x32x52 CD-RW QS0E (Master•Primary CD Burner) N: LiteON XJ-HD166S DVD-ROM DS1C (Slave•Primary DVD Player/Ripper) Silicon Image UATA/133 Card O: LiteON LDW-451@851 GS0F *speed hacked* (Master•Secondary DVD Burner/Ripper) P: NEC ND-2500A 1.062003121900 (Slave•Primary DVD Burner) |
|
| |
|
25-04-2004
| #16 |
| New on Forum Join Date: Feb 2004 Location: Somewhere in the midwest
Posts: 23
| RiTek RiData 4x DVD+R burned @ 4x Burner: NEC ND-2500A f/w 1.0603121900, 4.38GB Movie Media Info: Code: Media Information Region information N/A not a DVD-VIDEO Media code/Manufacturer ID RITEK R03 Media Product Revision Number 02h Free Blocks 405405696 Free Capacity 4.38GB(4.70GB) Book Type DVD+R Media Type DVD+R Media Id Code Speed 8.0x 11080KBps Available Write Descriptor CLV 4.0x 5540KBps Available Write Descriptor CLV 2.4x 3324KBps Linear Density Blank Disc Track Density Unknown Number of Layers 1 Code: 00000000 01 02 00 00 A1 0F 02 00 00 03 00 00 00 26 05 3F .............&.? 00000010 00 00 00 00 00 00 03 52 49 54 45 4B 00 00 00 52 .......RITEK...R 00000020 30 33 02 38 23 54 37 09 00 3C 65 00 A0 5F 14 14 03.8#T7..<e.._.. 00000030 0A 0A 0A 0A 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................ Scanned using 4x/8ECC settings. Burned at 4x using DVD Decrypter 3.2.1.0
__________________ Secondary IDE Channel M: LiteON 52x32x52 CD-RW QS0E (Master•Primary CD Burner) N: LiteON XJ-HD166S DVD-ROM DS1C (Slave•Primary DVD Player/Ripper) Silicon Image UATA/133 Card O: LiteON LDW-451@851 GS0F *speed hacked* (Master•Secondary DVD Burner/Ripper) P: NEC ND-2500A 1.062003121900 (Slave•Primary DVD Burner) |
|
| |
|
26-04-2004
| #17 |
| CDFreaks Resident Join Date: Jan 2004 Location: .us
Posts: 5,923
| Ritek DVD+R 2.4x burned at 4x LiteOn LDW-451S@851S, GS0F (speedhacked), 4.38GB test disc Code: Disc Type DVD+R Book Type DVD-ROM Manufacturer RiTEK Corporation Media ID RITEKR01 Protection System None Region 1,2,3,4,5,6,7,8 Capacity 4.38 GB Free Size 0.00 GB Free Blocks 0 Number of Layers 1 Linear Density 0.267 um/bit Track Density 0.74 um/track Maximum Read Speed 8.0x Maximum Write Speed 6.0x Current Write Speed 6.0x CLV Write Speed Performance Descriptor 1 6.0x CLV Write Speed Performance Descriptor 2 4.0x CLV Write Speed Performance Descriptor 3 2.4x CLV -------------------------------------------------------------------------- 0000 : 01 0f 01 00 00 03 00 00 00 26 05 1f 00 00 00 00 .........&...... 0010 : 00 00 00 52 49 54 45 4b 00 00 00 52 30 31 01 38 ...RITEK...R01.8 0020 : 23 54 37 09 00 5a 65 00 ac 5f 14 14 0a 0a 0a 0a #T7..Ze.._...... 0030 : 01 19 1b 0b 0b 0e 0f 01 00 00 00 00 00 00 00 00 ................ Burn speed: 4x Burning Software: KProbe2 (ADER-write function) (ASPI layer) Misc: Booktype auto-set to DVD-ROM Comments: To round off my series of RITEKR01 tests, here's a test disc burned at 4x.
__________________ "You don't have to be a supporter of freedom of speech to protest when your own ox is being gored. You do have to be a supporter of freedom of speech to protest when the government tries to censor the speech of those who are goring your ox." -Alan M. Dershowitz LiteOn Stuff: LiteOn F.A.Q. | OmniPatcher | DVD-Writer Overview | Changing Write Strategies | Crossflashing | XFlash Utility General Stuff: DVD-Writer F.A.Q. | Rules of the Optical Drive Forums | Attaching Scans | The rpc1.org Firmware Database Code Guys: http://codeguys.rpc1.org/ | send us e-mail I Use: Firefox + QuickDrag + NoRedirect + URL Flipper | Winamp | CmdOpen Shell Extension | HashCheck Shell Extension C64K: My Travel Photos | In Retirement... |
|
| |
|
06-05-2004
| #18 |
| Senior Administrator  Join Date: Jun 2003 Location: USA/Norway/Germany
Posts: 1,277
| Ritek DVD+R 8x burned at 8x Sony DW-U18A @ LiteOn SOHW-812S (US0J) Code: Media Information Region information N/A not a DVD-VIDEO Media code/Manufacturer ID RITEK R03 Media Product Revision Number 01h Book Type DVD-ROM Media Type DVD+R Media Id Code Speed 8.0x 11080KBps Data area starting sector 30000h Data area end sector 1E994Fh Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 Code: 00000000 08 02 00 00 01 0F 01 00 00 03 00 00 00 21 99 4F .............!.O 00000010 00 00 00 00 00 00 03 52 49 54 45 4B 00 00 00 52 .......RITEK...R 00000020 30 33 01 38 23 54 37 09 00 3C 65 00 A0 5F 14 14 03.8#T7..<e.._.. 00000030 0A 0A 0A 0A 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................ Burn speed: 8x Software: Nero v6.3.1.10 Misc: Booktype set to DVD-ROM
__________________ Intel® Core™2 Quad ASUS P5K-E/WIFI AP (Intel® P35 & ICH9R) with Infineon 2GB RAM and 1200 Watt PSU My review PC – (click to view) To become a member of cdfreaks.com just click here to join 2 FAT 2 FLY ! Last edited by rdgrimes; 06-05-2004 at 15:20.. |
|
| |
|
06-05-2004
| #19 |
| True Blue  Join Date: Jul 2002 Location: In front of my PC
Posts: 738
| Ritek DVD+R 8x burned at 8x Liteon 812S Media Information Media code/Manufacturer ID RITEK R03 Format Capacity 4.36GB(4.68GB) Book Type DVD+R Media Type DVD+R Media Id Code Speed 8.0x 11080KBps Available Write Descriptor CLV 8.0x 11080KBps Available Write Descriptor CLV 5.9x 8112KBps Available Write Descriptor CLV 4.0x 5540KBps Available Write Descriptor CLV 2.4x 3324KBps Data area starting sector 30000h Data area end sector 22E74Fh Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 00000000 08 02 00 00 A1 0F 02 00 00 03 00 00 00 25 E7 4F .............%.O 00000010 00 00 00 00 00 00 03 52 49 54 45 4B 00 00 00 52 .......RITEK...R 00000020 30 33 01 38 23 54 37 09 00 3C 65 00 A0 5F 14 14 03.8#T7..<e.._.. 00000030 0A 0A 0A 0A 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................ Last edited by rdgrimes; 06-05-2004 at 15:21.. |
|
| |
|
06-05-2004
| #20 |
| True Blue Join Date: Jul 2002 Location: In front of my PC
Posts: 738
| Ritek DVD+R 8x burned at 8x Pioneer 107D Media Information Media code/Manufacturer ID RITEK R03 Format Capacity 4.36GB(4.68GB) Book Type DVD+R Media Type DVD+R Media Id Code Speed 8.0x 11080KBps Available Write Descriptor CLV 8.0x 11080KBps Available Write Descriptor CLV 5.9x 8112KBps Available Write Descriptor CLV 4.0x 5540KBps Available Write Descriptor CLV 2.4x 3324KBps Data area starting sector 30000h Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 00000000 08 02 00 00 A1 0F 02 00 00 03 00 00 00 25 E7 4F .............%.O 00000010 00 00 00 00 00 00 03 52 49 54 45 4B 00 00 00 52 .......RITEK...R 00000020 30 33 01 38 23 54 37 09 00 3C 65 00 A0 5F 14 14 03.8#T7..<e.._.. 00000030 0A 0A 0A 0A 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................ Last edited by rdgrimes; 06-05-2004 at 15:22.. |
|
| |
|
06-05-2004
| #21 |
| CDFreaks Resident Join Date: May 2002 Location: USA
Posts: 537
| Ritek 8x burned at 8x Liteon 811s HS0Q 4.14GB test data Code: Media Information Region information N/A not a DVD-VIDEO Media code/Manufacturer ID RITEK R03 Media Product Revision Number 02h Book Type DVD-ROM Media Type DVD+R Media Id Code Speed 8.0x 11080KBps Data area starting sector 30000h Data area end sector 23051Fh Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 1 Code: 08 02 00 00 01 0F 01 00 00 03 00 00 00 26 05 1F .............&.. 00 00 00 00 00 00 03 52 49 54 45 4B 00 00 00 52 .......RITEK...R 30 33 02 38 23 54 37 09 00 3C 65 00 A0 5F 14 14 03.8#T7..<e.._.. 0A 0A 0A 0A 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................ Sold as: RiData 4x +R, Made in Taiwan, 50-disc spindle from NewEgg Burn speed: 8x Software: kprobe ater/ader test Misc: Booktype autoset to DVD-ROM Comments: Crap? any reason mine are so bad and everyone else so good. my drive burns RICOHJPNR01 good but not these. last time ill get these! glad it was only 50! wish it was only 5! Last edited by rdgrimes; 07-05-2004 at 00:56.. |
|
| |
|
23-05-2004
| #22 |
| New on Forum Join Date: May 2004
Posts: 1
| RiTEK DVD+R 4x burned at 4x LiteOn LDW-451S 'firmware upgraded' to LDW851S GS0f, 4.36Gb data. Written at 4x Code: Disc Type DVD+R Book Type Unknown Manufacturer RiTEK Corporation Media ID RITEK Protection System None Region 1,2,3,4,5,6,7,8 Capacity 4,38 GB Free Size 0,00 GB Free Blocks 0 Number of Layers 1 Linear Density 0.267 um/bit Track Density 0.74 um/track Maximum Read Speed 6,0x Maximum Write Speed 4,0x Current Write Speed 4,0x CLV Write Speed Performance Descriptor 1 4,0x CLV Write Speed Performance Descriptor 2 2,4x CLV Code: 0000 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0010 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0020 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ Last edited by rdgrimes; 23-05-2004 at 22:47.. |
|
| |
|
26-05-2004
| #23 |
| CDFreaks Resident Join Date: Jan 2004 Location: .us
Posts: 5,923
| Ritek DVD+R 2.4x burned at 4x LiteOn SOHW-812S, US0N (burn-adjusted), 4.07GB data disc Code: VID LITE-ON PID DVDRW SOHW-812S F/W Revision US0N Date Code 2004/05/14 18:19 FlashROM Manufacturer ID C2 FlashROM Device ID 37 FlashROM Type MXIC(MX29LV008B)(+3.3V) Region 1 Vendor Resets Available 4 User Resets Available 4 RPC Scheme RPC II Burst Rate 26.07 MB/S Disc Type DVD+R Book Type DVD-ROM Manufacturer RiTEK Corporation Media ID RITEKR01 Protection System None Region 1,2,3,4,5,6,7,8 Capacity 4.38 GB Free Size 0.00 GB Free Blocks 0 Number of Layers 1 Linear Density 0.267 um/bit Track Density 0.74 um/track Maximum Read Speed 7.6x Maximum Write Speed 4.0x Current Write Speed 4.0x CLV Write Speed Performance Descriptor 1 4.0x CLV Write Speed Performance Descriptor 2 2.4x CLV -------------------------------------------------------------------------- 0000 : 01 0f 01 00 00 03 00 00 00 23 87 6f 00 00 00 00 .........#.o.... 0010 : 00 00 00 52 49 54 45 4b 00 00 00 52 30 31 01 38 ...RITEK...R01.8 0020 : 23 54 37 09 00 5a 65 00 ac 5f 14 14 0a 0a 0a 0a #T7..Ze.._...... 0030 : 01 19 1b 0b 0b 0e 0f 01 00 00 00 00 00 00 00 00 ................ Burn speed: 4x Software: Nero CD-DVD Speed 3.00 (create data disc) Misc: Booktype set to DVD-ROM
__________________ "You don't have to be a supporter of freedom of speech to protest when your own ox is being gored. You do have to be a supporter of freedom of speech to protest when the government tries to censor the speech of those who are goring your ox." -Alan M. Dershowitz LiteOn Stuff: LiteOn F.A.Q. | OmniPatcher | DVD-Writer Overview | Changing Write Strategies | Crossflashing | XFlash Utility General Stuff: DVD-Writer F.A.Q. | Rules of the Optical Drive Forums | Attaching Scans | The rpc1.org Firmware Database Code Guys: http://codeguys.rpc1.org/ | send us e-mail I Use: Firefox + QuickDrag + NoRedirect + URL Flipper | Winamp | CmdOpen Shell Extension | HashCheck Shell Extension C64K: My Travel Photos | In Retirement... Last edited by code65536; 27-05-2004 at 21:12.. Reason: Typo correction |
|
| |
|
07-06-2004
| #24 |
| CDFreaks Resident  Join Date: May 2002 Location: Sthlm
Posts: 5,496
| RiTEK DVD+R 4x burned at 4x Sony DRU500A 2.1a -------------------------------------------------------------------------- Unique Disc Identifier : [DVD+R:RITEK-R02-001] -------------------------------------------------------------------------- Disc Type : [DVD+R] Manufacturer ID : [RITEK] Manufacturer Name : [Ritek Co.] Media Type ID : [R02] Product Revision : [001] Disc Application Code : [General Purpose] Recording Speeds : [1x , 2.4x , 4x] Blank Disc Capacity : [Not Supported By Method 2] -------------------------------------------------------------------------- ** INFO : An Empty Writable Disc Is Recommended For Accurate Results ** INFO : Drive = LITE-ON DVDRW SOHW-812S [FW US0N] ** INFO : Write Capabilities = DVD+R DVD+R-DL DVD+RW DVD-R DVD-RW ** INFO : Disc = [DVD+R:RITEK-R02-001] ** INFO : Write Speeds (Supported By This Drive On This Disc) Listed Below ** INFO : GET PERFORMANCE Write Speed Descriptor(s) Descriptor #1 = 5540 KBPS ( 4.00x) - [CLV/Non-Pure CAV] Descriptor #2 = 3324 KBPS ( 2.40x) - [CLV/Non-Pure CAV] ** INFO : MODE SENSE Write Speed Descriptor(s) [Legacy Command] Descriptor #1 = 5540 KBPS ( 4.00x) - [CLV/Non-Pure CAV] Descriptor #2 = 3324 KBPS ( 2.40x) - [CLV/Non-Pure CAV] 0000 : a1 0f 02 00 00 03 00 00 00 25 15 9f 00 00 00 00 .........%...... 0010 : 00 00 01 52 49 54 45 4b 00 00 00 52 30 32 01 38 ...RITEK...R02.8 0020 : 23 54 37 09 00 3c 65 00 a0 5f 14 14 0a 0a 0a 0a #T7..<e.._...... 0030 : 01 19 1b 0b 0b 0e 0f 01 00 00 00 00 00 00 00 00 ................ 0040 : 01 00 38 38 00 25 62 3f 05 30 22 10 08 20 1c 01 ..88.%b?.0".. .. 0050 : 00 00 00 25 62 3f 05 30 22 10 08 20 1c 01 00 00 ...%b?.0".. .... Platinum DVD+R 4x burnt @4x
__________________ CloneCD - Down & Dirty... Disc Identification Code Disc Grading System OPC & Beta + & - Defeating Cactus w Feurio!® CDR components & Dye characteristics List of CD/DVD media sites in N. America & U.K. Last edited by rdgrimes; 07-06-2004 at 14:56.. |
|
| |
|
13-06-2004
| #25 |
| CDFreaks Resident Join Date: May 2002 Location: Sthlm
Posts: 5,496
| RiTEK DVD+R 4x burnt at 4x NEC2500A 1.07 HV2B5DL Unique Disc Identifier : [DVD+R:RITEK-R02-001] Disc Type : [DVD+R] Manufacturer ID : [RITEK] Manufacturer Name : [Ritek Co.] Media Type ID : [R02] Product Revision : [001] Disc Application Code : [General Purpose] Recording Speeds : [1x , 2.4x , 4x] Blank Disc Capacity : [2,295,104 Sectors = 4,482.6MB = 4.38GB (4.70GB)] Sold as Platinum +R 4x SW - CloneDVD2.0.9.4  |
|
| |
|
| |
| |
