Be part of the largest consumer electronics community of the world! Register now and join all the other happy members
16-05-2004
| #101 (permalink) |
| DVD Freak  Join Date: Oct 2003 Location: Nordic Region
Posts: 7,303
| Ricoh DVD+R 4x burned at 8x Drive: Lite-On DVDRW 411@811(Z-modV4) firmware HS0K (code65536 speedhacked) Code: DRIVE INFO: VID LITE-ON PID DVDRW LDW-811S F/W Revision HS0K Date Code 2003/12/29 10:46 FlashROM Manufacturer ID BF FlashROM Device ID D8 FlashROM Type SST(SST39LF/VF080)(+3.3V) Region Region free Burst Rate 26,80 MB/S DISC INFO: Disc Type DVD+R Book Type DVD-ROM Manufacturer Ricoh Company Limited Media ID RICOHJPNR01 Protection System None Region 1,2,3,4,5,6,7,8 Capacity 4,38 GB Free Size 0,00 GB Free Blocks 0 Number of Layers 1 Linear Density 0.267 um/bit Track Density 0.74 um/track Maximum Read Speed 5,9x Maximum Write Speed 8,0x Current Write Speed 8,0x CLV Write Speed Performance Descriptor 1 8,0x CLV Write Speed Performance Descriptor 2 6,0x CLV Write Speed Performance Descriptor 3 4,0x CLV Write Speed Performance Descriptor 4 2,4x CLV Burn speed: 8X Software: Nero 5.5.10.56 burned as datadisc Misc: MOVIE 4.3GB, R02/R01 swap, booktype set to DVD-ROM Comments: My third (25pcs) spindle with this media... What more to say? |
|  |
|
20-05-2004
| #102 (permalink) |
| CDFreaks Resident Join Date: Sep 2002 Location: Western Australia
Posts: 1,185
| Ricoh 2.4x burned at 6x Drive: LiteON LDW-451S@851S Firmware: GS0F - Speedhacked, Readhacked, Auto Bitsetting (DVD-ROM) Media: Fujifilm DVD+R 2.4x Color Series - Made in Taiwan Recording Speed: 6x Z-CLV Recording Size/Type: 4.38Gb Data Media Information Region information N/A not a DVD-VIDEO Media code/Manufacturer ID RICOHJPNR00 Media Product Revision Number 01h Free Blocks 405405696 Free Capacity 4.38GB(4.70GB) Book Type DVD+R Media Type DVD+R Media Id Code Speed 2.4x 3324KBps Available Write Descriptor CLV 8.0x 11080KBps Available Write Descriptor CLV 6.0x 8310KBps Available Write Descriptor CLV 4.0x 5540KBps Available Write Descriptor CLV 2.4x 3324KBps Data area starting sector 30000h Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 00000000 08 02 00 00 A1 0F 02 00 00 03 00 00 00 26 05 3F .............&.? 00000010 00 00 00 00 00 00 00 52 49 43 4F 48 4A 50 4E 52 .......RICOHJPNR 00000020 30 30 01 38 23 54 37 0C 00 50 6C 00 C8 66 16 18 00.8#T7..Pl..f.. 00000030 0B 0B 0A 0B 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................ Comments: Wow! I knew my LiteON burner loved RICOHJPNR01/02 discs, but these RICOHJPNR00/01 discs have really surprised me by how well they burn at more than twice their rated speed!!! Regards, TerminalVeloCD
__________________ TerminalVeloCD - ODD Enthusiast from Western Australia ASUS DRW-1608P, DRW-1608P3S, DRW-1814BL, DRW-1814BLT BenQ DW1620 Pro, DW1640, DW1650, DW1655 LG (HL-DT-ST) GSA-4163B, GSA-4167B, GSA-H10N, GSA-H22N, GH20NS10, GGC-H20L LiteON SOHW-1693S, LH-18A1P, LH-20A1P, DH20A4P NEC ND-2500A, ND-3500A, ND-3520A, ND-3540A Pioneer DVR-106D, DVR-107D, DVR-108, DVR-109, DVR-110D, DVR-111D, DVR-112D, DVR-212, DVR-115D, DVR-215, DVR-116D, DVR-216, BDR-101A, DVR-213LS Plextor PX-716A, PX-755SA, PX-760A, PX-760SA Shuttle CR40 Sony DRU-830A Sony NEC Optiarc AW-G170A, AW-G170S, AD-7200A, AD-7200S Samsung (SST Corp.) TS-H552U, SH-W162C, SH-S182D, SH-S203B, SH-S203D |
|
| |
|
26-05-2004
| #103 (permalink) |
| New on Forum Join Date: Apr 2004
Posts: 6
| Ricoh DVD+R 4x burned at 8x LiteOn 811S HS0P Disc Type DVD+R Book Type DVD-ROM Manufacturer Ricoh Company Limited Media ID RICOHJPNR01 Protection System None Region 1,2,3,4,5,6,7,8 Capacity 4,38 GB Free Size 0,00 GB Free Blocks 0 Number of Layers 1 Linear Density 0.267 um/bit Track Density 0.74 um/track Maximum Read Speed 5,9x Maximum Write Speed 8,0x Current Write Speed 4,0x CLV Write Speed Performance Descriptor 1 8,0x CLV Write Speed Performance Descriptor 2 6,0x CLV Write Speed Performance Descriptor 3 4,0x CLV Write Speed Performance Descriptor 4 2,4x CLV Burned with max speed with Sonic MyDVD, so between 4x-8x, you can't set the speed yourself with this program. Only readable in my dvd-burner, check with dvdinfopro gives errors in my regular dvd-player. Sold as traxdata 4x dvd+r. Bought 25 pieces, results of first burned dvd, hope the rest does better. Last edited by akil39; 26-05-2004 at 19:52. |
|
| |
|
26-05-2004
| #104 (permalink) |
| New on Forum Join Date: Apr 2004
Posts: 6
| Ricoh DVD+R 4x burned at 2.4x LiteOn 811S HS0P Disc Type DVD+R Book Type DVD-ROM Manufacturer Ricoh Company Limited Media ID RICOHJPNR01 Protection System None Region 1,2,3,4,5,6,7,8 Capacity 4,38 GB Free Size 0,00 GB Free Blocks 0 Number of Layers 1 Linear Density 0.267 um/bit Track Density 0.74 um/track Maximum Read Speed 5,9x Maximum Write Speed 8,0x Current Write Speed 8,0x CLV Write Speed Performance Descriptor 1 8,0x CLV Write Speed Performance Descriptor 2 6,0x CLV Write Speed Performance Descriptor 3 4,0x CLV Write Speed Performance Descriptor 4 2,4x CLV dvd+r from same set as last test. Now burned with Nero 6.0.0.0 at 2.4x, which is max speed my sytem can handle according to Nero. Much better results. Test with liteon dvd-rom ltd 163 with dvdinfopro now gives no errors. So I will burn the rest of the dvd+r's at 2.4x from now on  sold as traxdata 4x 2nd try Last edited by rdgrimes; 26-05-2004 at 20:53. |
|
| |
|
26-05-2004
| #105 (permalink) |
| CDFreaks Resident  Join Date: Jan 2004 Location: .us
Posts: 5,931
| Ricoh DVD+R 4x burned at 8x LiteOn SOHW-812S, US0N (burn-adjusted), 4.38GB data disc Code: VID LITE-ON PID DVDRW SOHW-812S F/W Revision US0N Date Code 2004/05/14 18:19 FlashROM Manufacturer ID C2 FlashROM Device ID 37 FlashROM Type MXIC(MX29LV008B)(+3.3V) Region 1 Vendor Resets Available 4 User Resets Available 4 RPC Scheme RPC II Burst Rate 26.12 MB/S Disc Type DVD+R Book Type DVD-ROM Manufacturer Ricoh Company Limited Media ID RICOHJPNR01 Protection System None Region 1,2,3,4,5,6,7,8 Capacity 4.38 GB Free Size 0.00 GB Free Blocks 0 Number of Layers 1 Linear Density 0.267 um/bit Track Density 0.74 um/track Maximum Read Speed 8.0x Maximum Write Speed 8.0x Current Write Speed 8.0x CLV Write Speed Performance Descriptor 1 8.0x CLV Write Speed Performance Descriptor 2 6.0x CLV Write Speed Performance Descriptor 3 4.0x CLV Write Speed Performance Descriptor 4 2.4x CLV -------------------------------------------------------------------------- 0000 : 01 0f 01 00 00 03 00 00 00 26 05 3f 00 00 00 00 .........&.?.... 0010 : 00 00 01 52 49 43 4f 48 4a 50 4e 52 30 31 02 38 ...RICOHJPNR01.8 0020 : 23 54 37 09 00 3c 67 00 ac 62 16 18 0b 0b 0a 0b #T7..<g..b...... 0030 : 01 19 1b 0b 0b 0e 0f 01 00 00 00 00 00 00 00 00 ................ Burn speed: 8x Software: Nero CD-DVD Speed 3.00 (create data disc) Misc: Booktype set to DVD-ROM
__________________ "You don't have to be a supporter of freedom of speech to protest when your own ox is being gored. You do have to be a supporter of freedom of speech to protest when the government tries to censor the speech of those who are goring your ox." -Alan M. Dershowitz LiteOn Stuff: LiteOn F.A.Q. | OmniPatcher | DVD-Writer Overview | Changing Write Strategies | Crossflashing | XFlash Utility General Stuff: DVD-Writer F.A.Q. | Rules of the Optical Drive Forums | Attaching Scans | The rpc1.org Firmware Database Code Guys: http://codeguys.rpc1.org/ | send us e-mail I Use: Firefox + ClassicFox | Google Talk (Jabber) using Gaim for Windows | Winamp | EAC | Google Earth C64K: My Travel Photos | In Retirement...  |
|
| |
|
27-05-2004
| #106 (permalink) |
| New on Forum Join Date: Sep 2002 Location: NC, USA
Posts: 8
| Ricoh DVD+R 4x burned at 8x Lite On SOHW-812S US0N Code: Media Information Disc Regions are 1,2,3,4,5,6,7,8 Media code/Manufacturer ID RICOHJPNR01 Media Product Revision Number 02h Volume Name HELLSING_VOL1 Application id Implementation id Spruce Technologies Recording Date/Time (mm/dd/yyyy) 5/17/2002 15:28:10 Format Capacity 3.90GB(4.18GB) Book Type DVD-ROM Media Type DVD+R Media Id Code Speed 4.0x 5540KBps Data area starting sector 30000h Data area end sector 1F2A7Fh Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 Code: 00000000 08 02 00 00 01 0F 01 00 00 03 00 00 00 22 2A 7F ............."*. 00000010 00 00 00 00 00 00 01 52 49 43 4F 48 4A 50 4E 52 .......RICOHJPNR 00000020 30 31 02 38 23 54 37 09 00 3C 67 00 AC 62 16 18 01.8#T7..<g..b.. 00000030 0B 0B 0A 0B 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................ Last edited by rdgrimes; 28-05-2004 at 01:34. |
|
| |
|
28-05-2004
| #107 (permalink) |
| New on Forum Join Date: Sep 2002 Location: NC, USA
Posts: 8
| Ricoh DVD+R 4x burned at 8x Lite On SOHW-812S US0N Code: Media Information Disc Regions are 1,2,3,4,5,6,7,8 Media code/Manufacturer ID RICOHJPNR01 Media Product Revision Number 02h Volume Name HELLSING_VOL1 Application id Implementation id Spruce Technologies Recording Date/Time (mm/dd/yyyy) 5/17/2002 15:28:10 Format Capacity 3.90GB(4.18GB) Book Type DVD-ROM Media Type DVD+R Media Id Code Speed 4.0x 5540KBps Data area starting sector 30000h Data area end sector 1F2A7Fh Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 Code: 00000000 08 02 00 00 01 0F 01 00 00 03 00 00 00 22 2A 7F ............."*. 00000010 00 00 00 00 00 00 01 52 49 43 4F 48 4A 50 4E 52 .......RICOHJPNR 00000020 30 31 02 38 23 54 37 09 00 3C 67 00 AC 62 16 18 01.8#T7..<g..b.. 00000030 0B 0B 0A 0B 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................ |
|
| |
|
29-05-2004
| #108 (permalink) |
| New on Forum  Join Date: Feb 2004 Location: Somewhere in the midwest
Posts: 23
| Ricoh 4x DVD+R burned @ 8x LiteOn 851S Gs0F Code: Disc Type DVD+R Book Type DVD-ROM Manufacturer Ricoh Company Limited Media ID RICOHJPNR01 Protection System None Region 1,2,3,4,5,6,7,8 Capacity 4.38 GB Free Size 0.00 GB Free Blocks 0 Number of Layers 1 Linear Density 0.267 um/bit Track Density 0.74 um/track Maximum Read Speed 6.0x Maximum Write Speed 8.0x Current Write Speed 8.0x CLV Write Speed Performance Descriptor 1 8.0x CLV Write Speed Performance Descriptor 2 6.0x CLV Write Speed Performance Descriptor 3 4.0x CLV Write Speed Performance Descriptor 4 2.4x CLV Code: 00000000 08 02 00 00 01 0F 01 00 00 03 00 00 00 25 E1 2F .............%./ 00000010 00 00 00 00 00 00 01 52 49 43 4F 48 4A 50 4E 52 .......RICOHJPNR 00000020 30 31 02 38 23 54 37 09 00 3C 67 00 AC 62 16 18 01.8#T7..<g..b.. 00000030 0B 0B 0A 0B 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................
__________________ Secondary IDE Channel M: LiteON 52x32x52 CD-RW QS0E (Master•Primary CD Burner) N: LiteON XJ-HD166S DVD-ROM DS1C (Slave•Primary DVD Player/Ripper) Silicon Image UATA/133 Card O: LiteON LDW-451@851 GS0F *speed hacked* (Master•Secondary DVD Burner/Ripper) P: NEC ND-2500A 1.062003121900 (Slave•Primary DVD Burner) Last edited by rdgrimes; 29-05-2004 at 15:36. |
|
| |
|
01-06-2004
| #109 (permalink) |
| New on Forum Join Date: Nov 2003
Posts: 9

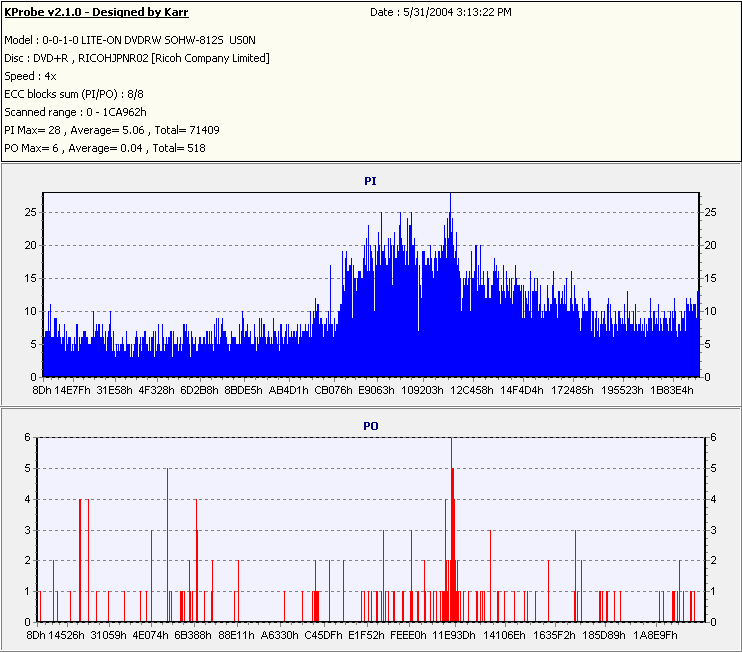

| Ricoh DVD+R 8x burned at 4x Lite-On SOHW-812S, F/W US0N, 4.38Gb data Code: Disc Type DVD+R Book Type DVD+R Manufacturer Ricoh Company Limited Media ID RICOHJPNR02 Protection System None Region 1,2,3,4,5,6,7,8 Capacity 4.38 GB Free Size 0.00 GB Free Blocks 0 Number of Layers 1 Linear Density 0.267 um/bit Track Density 0.74 um/track Maximum Read Speed 7.1x Maximum Write Speed 8.0x Current Write Speed 4.0x CLV Write Speed Performance Descriptor 1 8.0x CLV Write Speed Performance Descriptor 2 6.0x CLV Write Speed Performance Descriptor 3 4.0x CLV Write Speed Performance Descriptor 4 2.4x CLV Code: 0000 : a1 0f 02 00 00 03 00 00 00 1f ab 2f 00 00 00 00 .........../.... 0010 : 00 00 03 52 49 43 4f 48 4a 50 4e 52 30 32 03 38 ...RICOHJPNR02.8 0020 : 23 54 37 18 00 3e 6e 00 70 62 15 15 0b 0b 08 08 #T7..>n.pb...... 0030 : 01 19 1b 0b 0b 0e 0f 01 00 00 00 00 00 00 00 00 ................  |
|
| |
|
01-06-2004
| #110 (permalink) |
| New on Forum Join Date: May 2004
Posts: 28
| Ricoh DVD+R 4x burned at 8x DRIVE: Liteon 851s Firmware GS0H modded with code's speedhack/bitsetting R2 Disc Type DVD+R Book Type DVD-ROM Manufacturer Ricoh Company Limited Media ID RICOHJPNR01 Protection System None Region 1,2,3,4,5,6,7,8 Capacity 4.38 GB Free Size 0.00 GB Free Blocks 0 Number of Layers 1 Linear Density 0.267 um/bit Track Density 0.74 um/track Maximum Read Speed 7.6x Maximum Write Speed 8.0x Current Write Speed 4.0x CLV Write Speed Performance Descriptor 1 8.0x CLV Write Speed Performance Descriptor 2 6.0x CLV Write Speed Performance Descriptor 3 4.0x CLV Write Speed Performance Descriptor 4 2.4x CLV Complete Media Code: 00000000 08 02 00 00 01 0F 01 00 00 03 00 00 00 23 7A 4F .............#zO 00000010 00 00 00 00 00 00 01 52 49 43 4F 48 4A 50 4E 52 .......RICOHJPNR 00000020 30 31 02 38 23 54 37 09 00 3C 67 00 AC 62 16 18 01.8#T7..<g..b.. 00000030 0B 0B 0A 0B 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................ Written at 8x Sold as Ricoh DVD+R 4x Another great burn with RICOHJPNR01 and modded GS0H! Last edited by rdgrimes; 01-06-2004 at 22:57. |
|
| |
|
04-06-2004
| #111 (permalink) |
| New on Forum Join Date: May 2004
Posts: 22
| Ricoh DVD+R 4x burned at 4x Lieton SHOW 812-S US0N burn-adjusted (rev 2). 4.3 GB data Code: Disc Type DVD+R Book Type DVD-ROM Manufacturer Ricoh Company Limited Media ID RICOHJPNR01 Protection System None Region 1,2,3,4,5,6,7,8 Capacity 4.38 GB Free Size 0.00 GB Free Blocks 0 Number of Layers 1 Linear Density 0.267 um/bit Track Density 0.74 um/track Maximum Read Speed 7.9x Maximum Write Speed 8.0x Current Write Speed 4.0x CLV Write Speed Performance Descriptor 1 8.0x CLV Write Speed Performance Descriptor 2 6.0x CLV Write Speed Performance Descriptor 3 4.0x CLV Write Speed Performance Descriptor 4 2.4x CLV Code: -------------------------------------------------------------------------- Unique Disc Identifier : [DVD+R:RICOHJPN-R01-002] -------------------------------------------------------------------------- Disc Type : [DVD+R] Manufacturer ID : [RICOHJPN] Manufacturer Name : [Ricoh Company Ltd.] Media Type ID : [R01] Product Revision : [002] Disc Application Code : [General Purpose] Recording Speeds : [1x , 2.4x , 4x] Blank Disc Capacity : [Not Supported By Method 2] -------------------------------------------------------------------------- ** WARNING : Format 11h (Method 1) Is Recommended ADIP Retrieval Method ** WARNING : Format 00h (Method 2) Data May Contain Drive Modified Values ** INFO : Hex Dump Of 'Media Code'-Block Listed Below ** INFO : 4-Byte Header Preceding 'Media Code'-Block Discarded ** INFO : Format 00h (Method 2) - Physical Information (Copy Of ADIP) 0000 : 01 0f 01 00 00 03 00 00 00 25 95 9f 00 00 00 00 .........%...... 0010 : 00 00 01 52 49 43 4f 48 4a 50 4e 52 30 31 02 38 ...RICOHJPNR01.8 0020 : 23 54 37 09 00 3c 67 00 ac 62 16 18 0b 0b 0a 0b #T7..<g..b...... 0030 : 01 19 1b 0b 0b 0e 0f 01 00 00 00 00 00 00 00 00 ................ 0040 : 01 00 38 38 00 32 5e 20 0a 22 22 10 0e 12 12 01 ..88.2^ .""..... 0050 : 00 00 00 32 5e 20 0a 22 22 10 0e 12 12 01 00 00 ...2^ .""....... 0060 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0070 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0080 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0090 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00a0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00b0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00c0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00d0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00e0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00f0 : 00 00 00 00 00 00 00 00 00 03 00 00 00 25 95 9f .............%.. -------------------------------------------------------------------------- [DVD Identifier - http://DVD.Identifier.CDfreaks.com] -------------------------------------------------------------------------- The burn doesn't look good for what I thought would be the 812's preferred media, but it is still far better than that Interaxia crap. Last edited by rdgrimes; 04-06-2004 at 14:17. |
|
| |
|
04-06-2004
| #112 (permalink) |
| CDFreaks Resident  Join Date: Jan 2004 Location: København
Posts: 1,516
| Ricoh DVD+R 4x burned at ? LiteOn SOHW-812S, USON (burn-adjusted) 3.9GB data disc Code: Disc Type DVD+R Book Type DVD+R Manufacturer Ricoh Company Limited Media ID RICOHJPNR01 Protection System None Region 1,2,3,4,5,6,7,8 Capacity 4.38 GB Free Size 4.38 GB Free Blocks 2295104 Number of Layers 1 Linear Density 0.267 um/bit Track Density 0.74 um/track Maximum Read Speed 3.2x Maximum Write Speed 4.0x Current Write Speed 4.0x CLV Write Speed Performance Descriptor 1 4.0x CLV Write Speed Performance Descriptor 2 2.4x CLV -------------------------------------------------------------------------- Unique Disc Identifier : [DVD+R:RICOHJPN-R01-002] -------------------------------------------------------------------------- Disc Type : [DVD+R] Manufacturer ID : [RICOHJPN] Manufacturer Name : [Ricoh Company Ltd.] Media Type ID : [R01] Product Revision : [002] Disc Application Code : [General Purpose] Recording Speeds : [1x , 2.4x , 4x] Blank Disc Capacity : [Not Supported By Method 2] -------------------------------------------------------------------------- ** WARNING : Format 11h (Method 1) Is Recommended ADIP Retrieval Method ** WARNING : Format 00h (Method 2) Data May Contain Drive Modified Values ** INFO : Hex Dump Of 'Media Code'-Block Listed Below ** INFO : 4-Byte Header Preceding 'Media Code'-Block Discarded ** INFO : Format 00h (Method 2) - Physical Information (Copy Of ADIP) 0000 : a1 0f 02 00 00 03 00 00 00 26 05 3f 00 00 00 00 .........&.?.... 0010 : 00 00 01 52 49 43 4f 48 4a 50 4e 52 30 31 02 38 ...RICOHJPNR01.8 0020 : 23 54 37 09 00 3c 67 00 ac 62 16 18 0b 0b 0a 0b #T7..<g..b...... 0030 : 01 19 1b 0b 0b 0e 0f 01 00 00 00 00 00 00 00 00 ................ 0040 : 01 00 38 38 00 32 5e 20 0a 22 22 10 0e 12 12 01 ..88.2^ .""..... 0050 : 00 00 00 32 5e 20 0a 22 22 10 0e 12 12 01 00 00 ...2^ .""....... 0060 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0070 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0080 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0090 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00a0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00b0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00c0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00d0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00e0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00f0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ -------------------------------------------------------------------------- [DVD Identifier - http://DVD.Identifier.CDfreaks.com] -------------------------------------------------------------------------- burned with RecordNow DX at max speed, the disk is Ricoh DVD+R sold as Ritek DVD+R 4x in a 25 spindel pack. using VIA KT133A Chipset with on board Raid 0 : Striping Last edited by rdgrimes; 04-06-2004 at 17:12. |
|
| |
|
10-06-2004
| #113 (permalink) |
| New on Forum Join Date: Apr 2004
Posts: 19
| Ricoh DVD+R 8x burned at 8x Lite-on 812S bios modded 832S. Code: Disc Regions are 1,2,3,4,5,6,7,8 Media code/Manufacturer ID RICOHJPNR02 Media Product Revision Number 03h Volume Name Application id Implementation id mkisofs Recording Date/Time (mm/dd/yyyy) 5/17/2004 23:25:43 Format Capacity 4.37GB(4.69GB) Book Type DVD-ROM Media Type DVD+R Media Id Code Speed 8.0x 11080KBps Data area starting sector 30000h Data area end sector 22F06Fh Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 Media Code : 00000000 08 02 00 00 01 0F 01 00 00 03 00 00 00 25 F0 6F .............%.o 00000010 00 00 00 00 00 00 03 52 49 43 4F 48 4A 50 4E 52 .......RICOHJPNR 00000020 30 32 03 38 23 54 37 18 00 3E 6E 00 70 62 15 15 02.8#T7..>n.pb.. 00000030 0B 0B 08 08 01 19 1B 0B 0B 0E 0F 01 00 00 00 00 ................  bad start but surface scan is ok. i'll try another one @4x. Last edited by rdgrimes; 10-06-2004 at 17:30. |
|
| |
|
17-06-2004
| #114 (permalink) |
| New on Forum Join Date: Sep 2002
Posts: 7
| Ricoh DVD+R 2.4x burned at ? Unknown burner Media Information Region information N/A not a DVD-VIDEO Media code/Manufacturer ID RICOHJPNR00 Media Product Revision Number 01h Volume Name Application id Implementation id Recording Date/Time (mm/dd/yyyy) 0/ 0/ 0 0:00:00 Format Capacity 4.26GB(4.58GB) Book Type DVD-ROM Media Type DVD+R Media Id Code Speed 2.4x 3324KBps Data area starting sector 30000h Data area end sector 221A9Fh Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 Sold as Traxdata DVD+R General  Can anyone recommend me a firmware for better results? My DVD's aren't readable with the burner! Last edited by rdgrimes; 17-06-2004 at 14:33. |
|
| |
|
19-06-2004
| #115 (permalink) |
| CDFreaks Resident Join Date: Jun 2004
Posts: 642
| Ricoh 4X burned @8X NEC 2500A f/w 1.07v2b5 Disc: DVD-ROM (RICOHJPN R01) Selected speed: 4 X PI errors Maximum: 380 Average: 55.36 Total: 851483 PI failures Maximum: 7 Average: 0.12 Total: 1370 PO failures: n/a Jitter: n/a Scanning statistics Number of samples: 126611 Average scanning interval: 1.13 ECC Glitches removed: 0 My very first results posted Media used: ARITA DVD+R 4X pink top  Last edited by rdgrimes; 19-06-2004 at 01:32. |
|
| |
|
19-06-2004
| #116 (permalink) |
| CDFreaks Resident Join Date: Jun 2004
Posts: 642
| Ricoh 2.4X burned @8X NEC 2500A f/w 1.07v2b5 Disc: DVD-ROM (RICOHJPN R00) Selected speed: 4 X PI errors Maximum: 12 Average: 1.84 Total: 16230 PI failures Maximum: 4 Average: 0.09 Total: 1579 PO failures: n/a Jitter: n/a Scanning statistics Number of samples: 126657 Average scanning interval: 1.13 ECC Glitches removed: 0 Media used: FUJI DVD+R unrated purple print  Last edited by rdgrimes; 19-06-2004 at 01:33. |
|
| |
|
26-06-2004
| #117 (permalink) |
| CD Freaks Junior Member  Join Date: Apr 2004 Location: Wooster, OH
Posts: 96
| Ricoh DVD+R 4x burned at 8x Lite-On 451s@851s GSC2 Media Information Disc Regions are 1,2,3,4,5,6,7,8 Media code/Manufacturer ID RICOHJPNR01 Media Product Revision Number 02h Volume Name LAST_SAMURAI_D2 Application id Implementation id AHEAD Nero Recording Date/Time (mm/dd/yyyy) 6/26/2004 1:27:14 Format Capacity 3.99GB(4.28GB) Book Type DVD-ROM Media Type DVD+R Media Id Code Speed 4.0x 5540KBps Data area starting sector 30000h Data area end sector 1FE16Fh Linear Density 0.267um/bit Track Density 0.74um/track Number of Layers 1 Sold as Ridata 4x Had bad results with the first few burns at 8X and kept switching firmware. Settled on the GSC2 and burned a few at 4X and 6X then this one at 8X.
__________________ "Programming today is a race between software engineers striving to build bigger and better idiot-proof programs, and the Universe trying to produce bigger and better idiots. So far, the Universe is winning." --Rich Cook Last edited by rdgrimes; 26-06-2004 at 14:27. |
|
| |
|
03-07-2004
| #118 (permalink) |
| CDFreaks Resident  Join Date: May 2002 Location: Sthlm
Posts: 5,497
| Ricoh DVD+R 2.4x burnt @2.4x NEC 2500 1.07 v2b5 Unique Disc Identifier : [DVD+R:RICOHJPN-R00-001] Disc Type : [DVD+R] Manufacturer ID : [RICOHJPN] Manufacturer Name : [Ricoh Company Ltd.] Media Type ID : [R00] Product Revision : [001] Disc Application Code : [General Purpose] Recording Speeds : [1x , 2.4x] Blank Disc Capacity : [2,295,104 Sectors = 4,482.6MB = 4.38GB (4.70GB)] ** INFO : GET PERFORMANCE Write Speed Descriptor(s) Descriptor #1 = 10816 KBPS ( 8.00x) - [CLV/Non-Pure CAV] Descriptor #2 = 8112 KBPS ( 6.00x) - [CLV/Non-Pure CAV] Descriptor #3 = 5408 KBPS ( 4.00x) - [CLV/Non-Pure CAV] Descriptor #4 = 3245 KBPS ( 2.40x) - [CLV/Non-Pure CAV] Sold as Ricoh 2.4x SW - CloneDVD2  |
|
| |
|
03-07-2004
| #119 (permalink) |
| CDFreaks Resident Join Date: May 2002 Location: Sthlm
Posts: 5,497
| Ricoh DVD+R 2.4x burnt @4x NEC 2500 1.07 v2b5 Unique Disc Identifier : [DVD+R:RICOHJPN-R00-001] Disc Type : [DVD+R] Manufacturer ID : [RICOHJPN] Manufacturer Name : [Ricoh Company Ltd.] Media Type ID : [R00] Product Revision : [001] Disc Application Code : [General Purpose] Recording Speeds : [1x , 2.4x] Blank Disc Capacity : [2,295,104 Sectors = 4,482.6MB = 4.38GB (4.70GB)] ** INFO : GET PERFORMANCE Write Speed Descriptor(s) Descriptor #1 = 10816 KBPS ( 8.00x) - [CLV/Non-Pure CAV] Descriptor #2 = 8112 KBPS ( 6.00x) - [CLV/Non-Pure CAV] Descriptor #3 = 5408 KBPS ( 4.00x) - [CLV/Non-Pure CAV] Descriptor #4 = 3245 KBPS ( 2.40x) - [CLV/Non-Pure CAV] Sold as Ricoh 2.4x SW - CloneDVD2  |
|
| |
