Old 01-11-2003   #1 (permalink)
Retired Moderator

Join Date: Jun 2002
Location: Deadwood
Posts: 11,449
Maxell DVD-R 2x burned at 2x
LDW-411S FS07 4.4GB movie
Media Information
Region information N/A not a DVD-VIDEO
Media code/Manufacturer ID MXLRG01
Format Capacity Not Formatted
Free Blocks 411107328
Free Capacity 4.38GB(4.71GB)
Book Type DVD-R
Media Type DVD-R
Media Id Code Speed 2.0x 2770KBps
Available Write Descriptor CLV 2.0x 2770KBps
Write Strategy Speed 1.0x 1385KBps
Data area starting sector 30000h
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1

00 6C 00 00 01 40 C1 FD 9E D8 50 00 02 58 0F 11 .l...@....P..X..
98 99 80 00 03 4D 58 4C 20 52 47 00 04 30 31 00 .....MXL RG..01.
00 00 00 00 05 88 80 00 00 00 01 00 00 00 00 00 ................

Sold as Maxell DVD-R 2x
this disc fails to read in Kprobe. At 2x read speed the scan fails at 19% with "Unrecovered Read Error". This is the first 18% of the disc scanned at 2x, ECC sum-8: This disc is more or less a coaster. My 166S ROM drive seems to be able to read it, but downshifts to 1x for the entire disc in DVDInfo.

Edit:I did another burn and scan with FS07, the results were the same.



Using the 166S to scan, the test completes at full speed (8x CAV), and here's the result:

Last edited by rdgrimes; 02-11-2003 at 00:46.
rdgrimes is offline   Reply With Quote
Old 01-11-2003   #2 (permalink)
Retired Moderator

Join Date: Jun 2002
Location: Deadwood
Posts: 11,449
Maxell DVD-R 2x burned at 2x
LDW-411S FS02 4.4GB movie
Media Information
Region information N/A not a DVD-VIDEO
Media code/Manufacturer ID MXLRG01
Format Capacity Not Formatted
Free Blocks 411107328
Free Capacity 4.38GB(4.71GB)
Book Type DVD-R
Media Type DVD-R
Media Id Code Speed 2.0x 2770KBps
Available Write Descriptor CLV 2.0x 2770KBps
Write Strategy Speed 1.0x 1385KBps
Data area starting sector 30000h
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1

00 6C 00 00 01 40 C1 FD 9E D8 50 00 02 58 0F 11 .l...@....P..X..
98 99 80 00 03 4D 58 4C 20 52 47 00 04 30 31 00 .....MXL RG..01.
00 00 00 00 05 88 80 00 00 00 01 00 00 00 00 00 ................

Sold as Maxell DVD-R 2x
Everything the same as the above test, except firmware.
This disc is readable in Kprobe at 2x speed, whether it's because of firmware or just variable media is anyone's guess.
rdgrimes is offline   Reply With Quote
Old 01-11-2003   #3 (permalink)
Retired Moderator

Join Date: Jun 2002
Location: Deadwood
Posts: 11,449

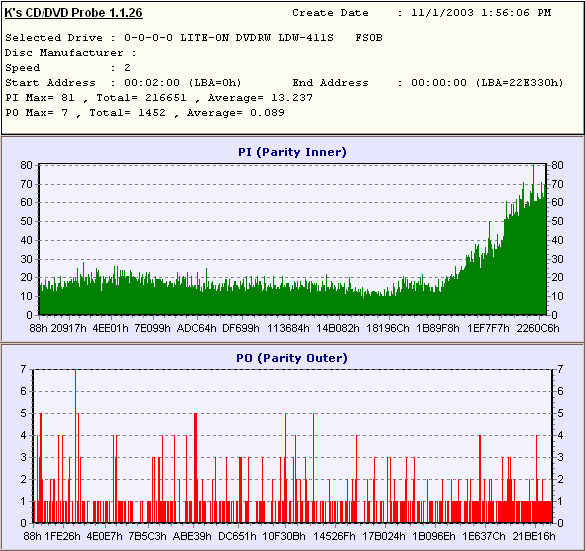

Maxell DVD-R 2x burned at 2x
LDW-411S FS0B 4.4GB movie
Media Information
Region information N/A not a DVD-VIDEO
Media code/Manufacturer ID MXLRG01
Format Capacity Not Formatted
Free Blocks 411107328
Free Capacity 4.38GB(4.71GB)
Book Type DVD-R
Media Type DVD-R
Media Id Code Speed 2.0x 2770KBps
Available Write Descriptor CLV 2.0x 2770KBps
Write Strategy Speed 1.0x 1385KBps
Data area starting sector 30000h
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1

00 6C 00 00 01 40 C1 FD 9E D8 50 00 02 58 0F 11 .l...@....P..X..
98 99 80 00 03 4D 58 4C 20 52 47 00 04 30 31 00 .....MXL RG..01.
00 00 00 00 05 88 80 00 00 00 01 00 00 00 00 00 ................

Sold as Maxell DVD-R 2x
Same everything as the above tests, except firmware.
rdgrimes is offline   Reply With Quote
Old 08-11-2003   #4 (permalink)
Retired Moderator

Join Date: Jun 2002
Location: Deadwood
Posts: 11,449

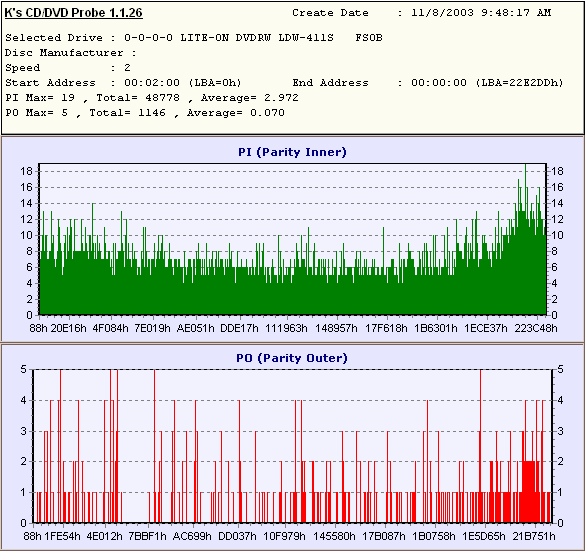

Maxell 2x burned at 2x
LDW-411S FS0B 4.4GB movie
Media Information
Region information N/A not a DVD-VIDEO
Media code/Manufacturer ID MXLRG01
Format Type UDF 1.02
Volume Name LORDOFTHERINGS
Application id
Implementation id AHEAD Nero
Recording Date/Time (mm/dd/yyyy) 9/30/2003 15:07:31
Format Capacity 4.36GB(4.68GB)
Book Type DVD-R
Media Type DVD-R
Media Id Code Speed 2.0x 2770KBps
Available Write Descriptor CLV 2.0x 2770KBps
Write Strategy Speed 1.0x 1385KBps
Data area starting sector 30000h
Data area end sector 22E35Fh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1

00 6C 00 00 01 40 C1 FD 9E D8 50 00 02 58 0F 11 .l...@....P..X..
98 99 80 00 03 4D 58 4C 20 52 47 00 04 30 31 00 .....MXL RG..01.
00 00 00 00 05 88 80 00 00 00 01 00 00 00 00 00 ................


sold as TDK DVD-R 2x, Made In Japan
Scanned at 2x, ECC-sum-8
rdgrimes is offline   Reply With Quote
Old 13-11-2003   #5 (permalink)
Retired Moderator

Join Date: Jun 2002
Location: Deadwood
Posts: 11,449
Maxell DVD-R 2x burned at 2x
Pioneer 106A 1.07 3.9GB movie
Media Information
Region information N/A not a DVD-VIDEO
Media code/Manufacturer ID MXLRG01
Format Capacity Not Formatted
Free Blocks 411107328
Free Capacity 4.38GB(4.71GB)
Book Type DVD-R
Media Type DVD-R
Media Id Code Speed 2.0x 2770KBps
Available Write Descriptor CLV 2.0x 2770KBps
Write Strategy Speed 1.0x 1385KBps
Data area starting sector 30000h
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1

00 6C 00 00 01 40 C1 FD 9E D8 50 00 02 58 0F 11 .l...@....P..X..
98 99 80 00 03 4D 58 4C 20 52 47 00 04 30 31 00 .....MXL RG..01.
00 00 00 00 05 88 80 00 00 00 01 00 00 00 00 00 ................

Sold as Maxell 2x DVD-R
Scanned in LiteOn 411S at 4x, ECC sum-8
rdgrimes is offline   Reply With Quote
Old 13-11-2003   #6 (permalink)
Senior Admin

OC-Freak's Avatar

Join Date: Dec 2001
Location: Cdfreaks review lab - Norway
Posts: 5,663
Maxell 2X written at 2X
Memorex dual-x, F/W 1.05, 4.38Gb data.

Code:
                            Media Information
Region information                                    N/A not a DVD-VIDEO
Media code/Manufacturer ID                                        MXLRG01
Format Capacity                                            4.37GB(4.69GB)
Book Type                                                           DVD-R
Media Type                                                          DVD-R
Media Id Code Speed                                         2.0x 2770KBps
Available Write Descriptor                           CLV  2.0x   2770KBps
Available Write Descriptor                           CLV  1.0x   1385KBps
Write Strategy Speed                                        1.0x 1385KBps
Data area starting sector                                          30000h
Data area end sector                                              22F60Fh
Linear Density                                                0.267um/bit
Track Density                                                0.74um/track
Number of Layers                                                        1

00000000 00 42 00 00 01 40 C1 FD 9E D8 50 00 02 58 0E 11 .B...@....P..X..
00000010 98 99 80 00 03 4D 58 4C 20 52 47 00 04 30 31 00 .....MXL RG..01.
00000020 00 00 00 00 05 88 80 00 00 00 01 00 00 00 00 00 ................

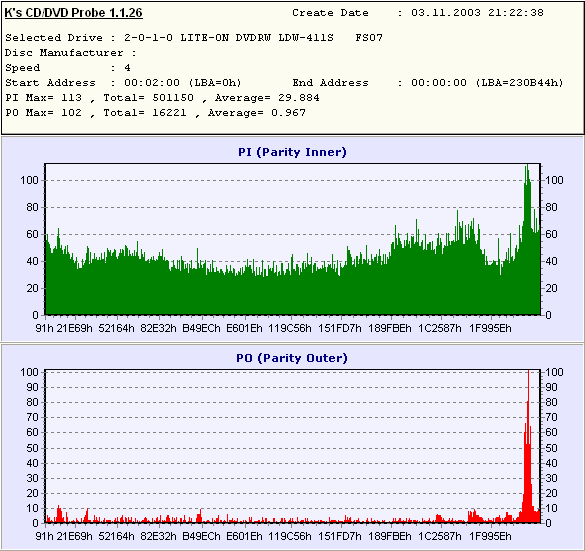

Sold as ICE WHITE 2X DVD-R and have Maxell ID, but is produced in Hong Kong by a factory using fake maxell ID's.
Scanned with Lite-On LDW-411S F/W FS07 at 4X CLV, PI/PO sum set to 8 ECC

__________________
I'm a real freak in many aspects!
OC-Freak is offline   Reply With Quote
Old 13-11-2003   #7 (permalink)
Senior Admin

OC-Freak's Avatar

Join Date: Dec 2001
Location: Cdfreaks review lab - Norway
Posts: 5,663
Maxell 2X written at 2X
Memorex dual-x, F/W 1.05, 4.38Gb data.

Code:
                            Media Information
Region information                                    N/A not a DVD-VIDEO
Media code/Manufacturer ID                                        MXLRG01
Format Capacity                                            4.37GB(4.69GB)
Book Type                                                           DVD-R
Media Type                                                          DVD-R
Media Id Code Speed                                         2.0x 2770KBps
Available Write Descriptor                           CLV  2.0x   2770KBps
Available Write Descriptor                           CLV  1.0x   1385KBps
Write Strategy Speed                                        1.0x 1385KBps
Data area starting sector                                          30000h
Data area end sector                                              22F60Fh
Linear Density                                                0.267um/bit
Track Density                                                0.74um/track
Number of Layers                                                        1

00000000 00 42 00 00 01 40 C1 FD 9E D8 50 00 02 58 0E 11 .B...@....P..X..
00000010 98 99 80 00 03 4D 58 4C 20 52 47 00 04 30 31 00 .....MXL RG..01.
00000020 00 00 00 00 05 88 80 00 00 00 01 00 00 00 00 00 ................

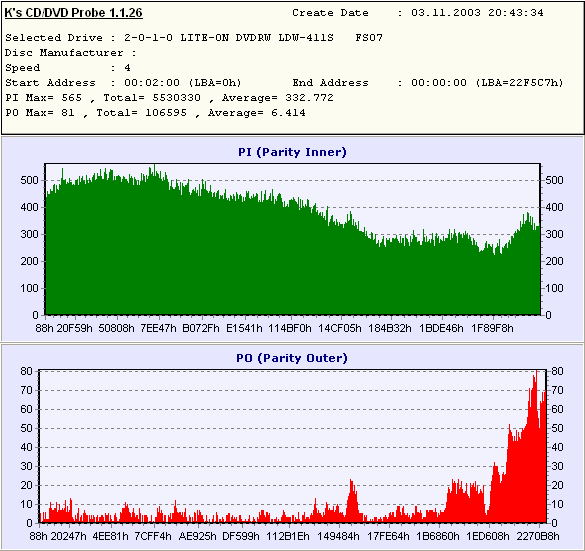

Sold as Power speed 2X DVD-R and have Maxell ID, but is produced in Hong Kong by a factory using fake maxell ID's.
Scanned with Lite-On LDW-411S F/W FS07 at 4X CLV, PI/PO sum set to 8 ECC

__________________
I'm a real freak in many aspects!
OC-Freak is offline   Reply With Quote
Old 01-12-2003   #8 (permalink)
New on Forum

Join Date: Nov 2003
Posts: 14
Maxell 2x burned at 2x
LiteOn LDW-411s

Region information N/A not a DVD-VIDEO
Media code/Manufacturer ID MXL RG01
Format Capacity 3.48GB(3.74GB)
Book Type DVD-R
Media Type DVD-R
Media Id Code Speed 2.0x 2770KBps
Available Write Descriptor CLV 2.0x 2770KBps
Write Strategy Speed 1.0x 1385KBps
Data area starting sector 30000h
Data area end sector 1BDF4Fh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1

---------------------------------------------------------------------------------
00000000 00 6C 00 00 01 40 C1 FD 9E D8 50 00 02 58 0E 11 .l...@....P..X..
00000010 98 99 80 00 03 4D 58 4C 20 52 47 00 04 30 31 00 .....MXL RG..01.
00000020 00 00 00 00 05 88 80 00 00 00 01 00 00 00 00 00 ................
---------------------------------------------------------------------------------

Sold as Cd-Store

Here is a 4x scans (According to OcFreak that's a Coast)
Attached Images
File Type: png maxell 2x w2x r4x.png (12.7 KB, 2877 views)
__________________
----------------------------------------
DVD Burner: Lite-on 411s
JudasPriest is offline   Reply With Quote
Old 01-12-2003   #9 (permalink)
New on Forum

Join Date: Nov 2003
Posts: 14
Continue
and a 2x scan (According to OcFreak that's "Ok")
So it's ok or a coast?
Attached Images
File Type: png maxell 2x w2x r2x.png (13.2 KB, 2870 views)
__________________
----------------------------------------
DVD Burner: Lite-on 411s
JudasPriest is offline   Reply With Quote
Old 10-12-2003   #10 (permalink)
Retired Moderator

Join Date: Jun 2002
Location: Deadwood
Posts: 11,449
Maxell DVD-R 2x burned at 2x
LDW-411S FS0F 4.4GB movie
Media Information
Region information N/A not a DVD-VIDEO
Media code/Manufacturer ID MXLRG01
Format Capacity Not Formatted
Free Blocks 411107328
Free Capacity 4.38GB(4.71GB)
Book Type DVD-R
Media Type DVD-R
Media Id Code Speed 2.0x 2770KBps
Available Write Descriptor CLV 2.0x 2770KBps
Write Strategy Speed 1.0x 1385KBps
Data area starting sector 30000h
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1

00 6C 00 00 01 40 C1 FD 9E D8 50 00 02 58 0F 11 .l...@....P..X..
98 99 80 00 03 4D 58 4C 20 52 47 00 04 30 31 00 .....MXL RG..01.
00 00 00 00 05 88 80 00 00 00 01 00 00 00 00 00 ................

Sold as TDK DVD-R 2x in movie box, made in Japan.
Scanned at 4x, ECC sum-8
rdgrimes is offline   Reply With Quote
Old 15-01-2004   #11 (permalink)
CD Freaks Member

ahgc's Avatar

Join Date: Dec 2003
Posts: 105

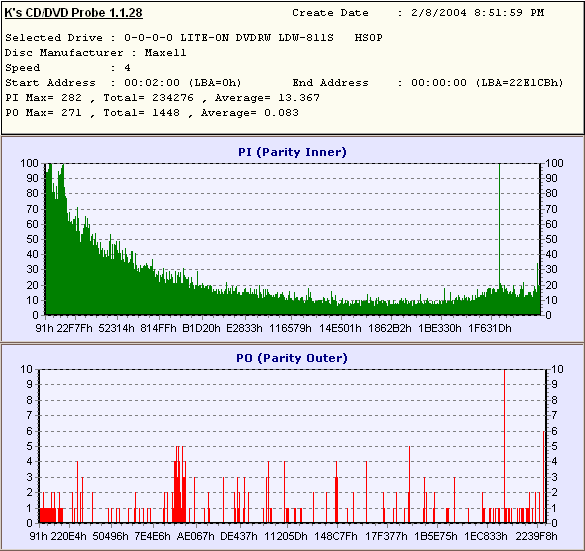

Maxell DVD-R 4x burned @ 4x
LiteOn 811s HS0K
DVD video 4.38GB

Code:
0000 : 01 40 c1 fd 9e d8 52 00  02 86 0e 11 87 89 80 00   .@....R.........
0010 : 03 4d 58 4c 20 52 47 00  04 30 32 00 00 00 00 00   .MXL RG..02.....
0020 : 05 88 80 00 00 00 02 00  06 0a 0e 15 87 78 90 00   .............x..
0030 : 07 88 80 00 00 00 00 00  08 05 16 0d 0f 0b 08 00   ................
Code:
Unique Disc Identifier : [DVD-R:MXL RG02]
--------------------------------------------------------------------------
Disc Type :              [DVD-R]
Manufacturer ID :        [MXL RG02]
Disc Application Code :  [Unrestricted Use : Consumer Purpose]
Recording Speeds :       [1x - 2x - 4x]
Blank Disc Capacity :    [2,298,496 Sectors = 4,489.3 MB = 4.38 GB]
Sold as Maxel DVD-R 1x-4x

Scanned @ 4x sum of 8 ECC
Attached Images
File Type: png maxell.png (12.6 KB, 2718 views)
Last edited by rdgrimes; 15-01-2004 at 02:38.
ahgc is offline   Reply With Quote
Old 26-01-2004   #12 (permalink)
Retired Moderator

Join Date: Jun 2002
Location: Deadwood
Posts: 11,449
Maxell DVD-R 2x burned at 2x
NEC ND-2500A 1.06 4.4GB movie

Media Information
Region information N/A not a DVD-VIDEO
Media code/Manufacturer ID MXLRG01
Format Type UDF 1.02
Volume Name PASSEDAWAY
Application id
Implementation id AHEAD Nero
Recording Date/Time (mm/dd/yyyy) 1/26/2004 9:04:37
Format Capacity 4.36GB(4.68GB)
Book Type DVD-R
Media Type DVD-R
Media Id Code Speed 2.0x 2770KBps
Available Write Descriptor CLV 2.0x 2770KBps
Write Strategy Speed 1.0x 1385KBps
Data area starting sector 30000h
Data area end sector 22E21Fh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1
00 6C 00 00 01 40 C1 FD 9E D8 50 00 02 58 0F 11 .l...@....P..X..
98 99 80 00 03 4D 58 4C 20 52 47 00 04 30 31 00 .....MXL RG..01.
00 00 00 00 05 88 80 00 00 00 01 00 00 00 00 00 ................


Sold as Maxell 2x DVD-R
Scanned at 4x, ECC sum-8
rdgrimes is offline   Reply With Quote
Old 07-02-2004   #13 (permalink)
CDFreaks Resident

Join Date: Jan 2003
Posts: 1,712
Maxell DVD-R 4x burned at 4x
Optorite DD0203 firmware ver 2.30 4.36GB movie

Code:
Media Information
Disc Regions are                                          1,2,3,4,5,6,7,8
Media code/Manufacturer ID                                       MXL RG02
Format Type                                                      UDF 1.02
Volume Name                                              PIRATESOFTHECARR
Application id
Implementation id                                              AHEAD  Nero
Recording Date/Time (mm/dd/yyyy)                       1/10/2004 23:04:22
Format Capacity                                            4.36GB(4.68GB)
Book Type                                                           DVD-R
Media Type                                                          DVD-R
Media Id Code Speed                                         4.0x 5540KBps
Available Write Descriptor                           CLV  4.0x   5540KBps
Available Write Descriptor                           CLV  2.0x   2770KBps
Write Strategy Speed                                        4.0x 5540KBps
2x Speed OPC beta                                                      0A
2x Speed OPC power                                                     0E
2x Write Strategy field 1                                     15 87 78 90
2x Write Strategy field 2                               88 80 00 00 00 00
4x Speed OPC beta                                                      05
4x Speed OPC power                                                     16
4x Write Strategy field 1                                     0D 0F 0B 08
4x Write Strategy field 2                                     97 07 0E 0B
4x Write Strategy field 3                                     A4 00 24 00
4x Speed OPC beta multi-pulse                                          05
4x Speed OPC power multi-pulse                                         19
4x Write Strategy field 4                                     17 A8 89 75
4x Write Strategy field 5                               C6 89 88 80 00 00
4x Write Strategy field 6                                  00 00 D0 00 00
Data area starting sector                                          30000h
Data area end sector                                              22E21Fh
Linear Density                                                0.267um/bit
Track Density                                                0.74um/track
Number of Layers                                                        1
Full media code:
Code:
00000000 00 6C 00 00 01 40 C1 FD 9E D8 52 00 02 86 0E 11 .l...@....R.....
00000010 87 89 80 00 03 4D 58 4C 20 52 47 00 04 30 32 00 .....MXL RG..02.
00000020 00 00 00 00 05 88 80 00 00 00 02 00 06 0A 0E 15 ................
Sold as Maxell 4x DVD-R
Scanned on LDW-451s@851s
4x - 8ECC
Attached Images
File Type: png maxell-r4.png (11.5 KB, 2576 views)
pchilson is offline   Reply With Quote
Old 09-02-2004   #14 (permalink)
Retired Moderator

Join Date: Jun 2002
Location: Deadwood
Posts: 11,449
Maxell DVD-% 4x burned at 4x
NEC 2500A, 1.06 4.4GB movie
Media Information
Region information N/A not a DVD-VIDEO
Media code/Manufacturer ID MXL RG02
Format Type UDF 1.02
Volume Name HUNTED
Application id
Implementation id AHEAD Nero
Recording Date/Time (mm/dd/yyyy) 2/ 8/2004 16:37:37
Format Capacity 4.28GB(4.59GB)
Book Type DVD-R
Media Type DVD-R
Media Id Code Speed 4.0x 5540KBps
Available Write Descriptor CLV 4.0x 5540KBps
Available Write Descriptor CLV 2.0x 2770KBps
Write Strategy Speed 4.0x 5540KBps
2x Speed OPC beta 0A
2x Speed OPC power 0E
2x Write Strategy field 1 15 87 78 90
2x Write Strategy field 2 88 80 00 00 00 00
4x Speed OPC beta 05
4x Speed OPC power 16
4x Write Strategy field 1 0D 0F 0B 08
4x Write Strategy field 2 97 07 0E 0B
4x Write Strategy field 3 A4 00 24 00
4x Speed OPC beta multi-pulse 05
4x Speed OPC power multi-pulse 19
4x Write Strategy field 4 17 A8 89 75
4x Write Strategy field 5 C6 89 88 80 00 00
4x Write Strategy field 6 00 00 D0 00 00
Data area starting sector 30000h
Data area end sector 2234FFh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1
00 6A 00 00 01 40 C1 FD 9E D8 52 00 02 86 0E 11 .j...@....R.....
87 89 80 00 03 4D 58 4C 20 52 47 00 04 30 32 00 .....MXL RG..02.
00 00 00 00 05 88 80 00 00 00 02 00 06 0A 0E 15 ................

Sold as Maxell DVD-R 4x
Scanned at 4x ECC sum-8
rdgrimes is offline   Reply With Quote
Old 09-02-2004   #15 (permalink)
Retired Moderator

Join Date: Jun 2002
Location: Deadwood
Posts: 11,449
Maxell DVD-R 4x burned at 4x
LiteOn 811S HS0P 4.4GB movie

Media Information
Region information N/A not a DVD-VIDEO
Media code/Manufacturer ID MXL RG02
Format Type UDF 1.02
Volume Name HUNTED
Application id
Implementation id AHEAD Nero
Recording Date/Time (mm/dd/yyyy) 2/ 8/2004 16:37:37
Format Capacity 4.28GB(4.59GB)
Book Type DVD-R
Media Type DVD-R
Media Id Code Speed 4.0x 5540KBps
Available Write Descriptor CLV 4.0x 5540KBps
Available Write Descriptor CLV 2.0x 2770KBps
Write Strategy Speed 4.0x 5540KBps
2x Speed OPC beta 0A
2x Speed OPC power 0E
2x Write Strategy field 1 15 87 78 90
2x Write Strategy field 2 88 80 00 00 00 00
4x Speed OPC beta 05
4x Speed OPC power 16
4x Write Strategy field 1 0D 0F 0B 08
4x Write Strategy field 2 97 07 0E 0B
4x Write Strategy field 3 A4 00 24 00
4x Speed OPC beta multi-pulse 05
4x Speed OPC power multi-pulse 19
4x Write Strategy field 4 17 A8 89 75
4x Write Strategy field 5 C6 89 88 80 00 00
4x Write Strategy field 6 00 00 D0 00 00
Data area starting sector 30000h
Data area end sector 2234FFh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1
00 6A 00 00 01 40 C1 FD 9E D8 52 00 02 86 0E 11 .j...@....R.....
87 89 80 00 03 4D 58 4C 20 52 47 00 04 30 32 00 .....MXL RG..02.
00 00 00 00 05 88 80 00 00 00 02 00 06 0A 0E 15 ................

Sold as Maxell DVD-R 4x
Scanned at 4x ECC sum-8
This disc does not play in my JVC DVD player ("no disc" error), but same media burned in NEC or Pioneer DOES play just fine.


Last edited by rdgrimes; 09-02-2004 at 05:36.
rdgrimes is offline   Reply With Quote
Old 09-02-2004   #16 (permalink)
Retired Moderator

Join Date: Jun 2002
Location: Deadwood
Posts: 11,449
Maxell DVD-R 4x burned at 4x
Pioneer 106D 1.07 4.4GB movie
Media Information
Region information N/A not a DVD-VIDEO
Media code/Manufacturer ID MXL RG02
Format Type UDF 1.02
Volume Name HUNTED
Application id
Implementation id AHEAD Nero
Recording Date/Time (mm/dd/yyyy) 2/ 8/2004 16:37:37
Format Capacity 4.28GB(4.59GB)
Book Type DVD-R
Media Type DVD-R
Media Id Code Speed 4.0x 5540KBps
Available Write Descriptor CLV 4.0x 5540KBps
Available Write Descriptor CLV 2.0x 2770KBps
Write Strategy Speed 4.0x 5540KBps
2x Speed OPC beta 0A
2x Speed OPC power 0E
2x Write Strategy field 1 15 87 78 90
2x Write Strategy field 2 88 80 00 00 00 00
4x Speed OPC beta 05
4x Speed OPC power 16
4x Write Strategy field 1 0D 0F 0B 08
4x Write Strategy field 2 97 07 0E 0B
4x Write Strategy field 3 A4 00 24 00
4x Speed OPC beta multi-pulse 05
4x Speed OPC power multi-pulse 19
4x Write Strategy field 4 17 A8 89 75
4x Write Strategy field 5 C6 89 88 80 00 00
4x Write Strategy field 6 00 00 D0 00 00
Data area starting sector 30000h
Data area end sector 2234FFh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1
00 6A 00 00 01 40 C1 FD 9E D8 52 00 02 86 0E 11 .j...@....R.....
87 89 80 00 03 4D 58 4C 20 52 47 00 04 30 32 00 .....MXL RG..02.
00 00 00 00 05 88 80 00 00 00 02 00 06 0A 0E 15 ................

Sold as Maxell 4x DVD-R
Scanned at 4x, ECC sum-8
rdgrimes is offline   Reply With Quote
Old 22-02-2004   #17 (permalink)
CD Freaks Junior Member

Join Date: Jan 2002
Posts: 54
Maxell DVD-R 4x burned at ?
Liteon 451S GSB7
Unique Disc Identifier : [DVD-R:MXL RG02]
--------------------------------------------------------------------------
Disc Type : [DVD-R]
Manufacturer ID : [MXL RG02]
Disc Application Code : [Unrestricted Use : Consumer Purpose]
Recording Speeds : [1x - 2x - 4x]
Blank Disc Capacity : [2,298,496 Sectors = 4,489.3 MB = 4.38 GB]
--------------------------------------------------------------------------
[DVD Identifier - http://DVD.Identifier.CDfreaks.com]
--------------------------------------------------------------------------
Sold as Maxell 4x DVD-R
Scanned at 4x, ECC sum-8
Attached Images
File Type: png maxell-data.png (12.5 KB, 2439 views)
Daffy is offline   Reply With Quote
Old 23-02-2004   #18 (permalink)
KTL
CDFreaks Resident

Join Date: Jan 2003
Location: Chicago
Posts: 1,994
Maxell 4X burned at 4X
411S@811S HS0E

Disc Regions are 1,2,3,4,5,6,7,8
Media code/Manufacturer ID MXL RG02
Format Type UDF 1.02
Volume Name
Application id
Implementation id AHEAD Nero
Recording Date/Time (mm/dd/yyyy) 2/22/2004 19:31:19
Format Capacity 4.33GB(4.65GB)
Book Type DVD-R
Media Type DVD-R
Media Id Code Speed 4.0x 5540KBps
Available Write Descriptor CLV 4.0x 5540KBps
Available Write Descriptor CLV 2.0x 2770KBps
Write Strategy Speed 4.0x 5540KBps
2x Speed OPC beta 0A
2x Speed OPC power 0E
2x Write Strategy field 1 15 87 78 90
2x Write Strategy field 2 88 80 00 00 00 00
4x Speed OPC beta 05
4x Speed OPC power 16
4x Write Strategy field 1 0D 0F 0B 08
4x Write Strategy field 2 97 07 0E 0B
4x Write Strategy field 3 A4 00 24 00
4x Speed OPC beta multi-pulse 05
4x Speed OPC power multi-pulse 19
4x Write Strategy field 4 17 A8 89 75
4x Write Strategy field 5 C6 89 88 80 00 00
4x Write Strategy field 6 00 00 D0 00 00
Data area starting sector 30000h
Data area end sector 22A87Fh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1

00000000 00 6C 00 00 01 40 C1 FD 9E D8 52 00 02 86 0E 11 .l...@....R.....
00000010 87 89 80 00 03 4D 58 4C 20 52 47 00 04 30 32 00 .....MXL RG..02.
00000020 00 00 00 00 05 88 80 00 00 00 02 00 06 0A 0E 15 ................

Sold as Maxell 4X 15-pk spindle w/blue packaging, top is yellow.
Scanned at 4X, ECC Sum = 8

The disc does NOT play in my 2 standalones, but fine in the PC.
KTL is offline   Reply With Quote
Old 02-03-2004   #19 (permalink)
CD Freaks Junior Member

Join Date: Feb 2004
Location: Canada
Posts: 72
Maxell DVD-R 4x burned at 4x
811s (HSOP)

Disc Regions are 1,2,3,4,5,6,7,8
Media code/Manufacturer ID MXL RG02
Format Type UDF 1.02
Volume Name MERMAID
Application id LBY CLONEDVD
Implementation id Stefan ID
Recording Date/Time (mm/dd/yyyy) 2/23/2004 20:03:59
Format Capacity 4.11GB(4.41GB)
Book Type DVD-R
Media Type DVD-R
Media Id Code Speed 4.0x 5540KBps
Available Write Descriptor CLV 4.0x 5540KBps
Available Write Descriptor CLV 2.0x 2770KBps
Write Strategy Speed 4.0x 5540KBps
2x Speed OPC beta 0A
2x Speed OPC power 0E
2x Write Strategy field 1 15 87 78 90
2x Write Strategy field 2 88 80 00 00 00 00
4x Speed OPC beta 05
4x Speed OPC power 16
4x Write Strategy field 1 0D 0F 0B 08
4x Write Strategy field 2 97 07 0E 0B
4x Write Strategy field 3 A4 00 24 00
4x Speed OPC beta multi-pulse 05
4x Speed OPC power multi-pulse 19
4x Write Strategy field 4 17 A8 89 75
4x Write Strategy field 5 C6 89 88 80 00 00
4x Write Strategy field 6 00 00 D0 00 00
Data area starting sector 30000h
Data area end sector 20E04Fh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1

00000000 00 6C 00 00 01 40 C1 FD 9E D8 52 00 02 86 0E 11 .l...@....R.....
00000010 87 89 80 00 03 4D 58 4C 20 52 47 00 04 30 32 00 .....MXL RG..02.
00000020 00 00 00 00 05 88 80 00 00 00 02 00 06 0A 0E 15 ................

Sold as Maxell DVD-R 4x 5/pack Yellow on top.
Scanned at 4x, ECC Sum=8

Freezing (artifacts) after an hour of movie at my JVC dvd player.
Attached Images
File Type: png maxell-dvd-r4x.png (13.3 KB, 2335 views)
Last edited by eap_44; 02-03-2004 at 05:29.
eap_44 is offline   Reply With Quote
Old 02-03-2004   #20 (permalink)
CD Freaks Junior Member

Join Date: Feb 2004
Location: Canada
Posts: 72
Maxell DVD-R 4x burned at 4x
811s (HSOP)

Disc Regions are 1,2,3,4,5,6,7,8
Media code/Manufacturer ID MXL RG02
Format Type UDF 1.02
Volume Name TARZAN
Application id LBY CLONEDVD
Implementation id Stefan ID
Recording Date/Time (mm/dd/yyyy) 2/20/2004 19:27:25
Format Capacity 4.24GB(4.55GB)
Book Type DVD-R
Media Type DVD-R
Media Id Code Speed 4.0x 5540KBps
Available Write Descriptor CLV 4.0x 5540KBps
Available Write Descriptor CLV 2.0x 2770KBps
Write Strategy Speed 4.0x 5540KBps
2x Speed OPC beta 0A
2x Speed OPC power 0E
2x Write Strategy field 1 15 87 78 90
2x Write Strategy field 2 88 80 00 00 00 00
4x Speed OPC beta 05
4x Speed OPC power 16
4x Write Strategy field 1 0D 0F 0B 08
4x Write Strategy field 2 97 07 0E 0B
4x Write Strategy field 3 A4 00 24 00
4x Speed OPC beta multi-pulse 05
4x Speed OPC power multi-pulse 19
4x Write Strategy field 4 17 A8 89 75
4x Write Strategy field 5 C6 89 88 80 00 00
4x Write Strategy field 6 00 00 D0 00 00
Data area starting sector 30000h
Data area end sector 21EDDFh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1

00000000 00 6C 00 00 01 40 C1 FD 9E D8 52 00 02 86 0E 11 .l...@....R.....
00000010 87 89 80 00 03 4D 58 4C 20 52 47 00 04 30 32 00 .....MXL RG..02.
00000020 00 00 00 00 05 88 80 00 00 00 02 00 06 0A 0E 15 ................

Sold as Maxell DVD-R 4x 5 per pack Yellow on top
Scanned at 4x

This also freezes (artifacts) after an hour of playing in my JVC dvd player.
Attached Images
File Type: png maxell-dvd-r4x-tarzan4x.png (12.4 KB, 2302 views)
eap_44 is offline   Reply With Quote
Old 02-03-2004   #21 (permalink)
CD Freaks Junior Member

Join Date: Feb 2004
Location: Canada
Posts: 72
Maxell DVD-R 4x burned at 2x
811s (HSOP)

Disc Regions are 1,2,3,4,5,6,7,8
Media code/Manufacturer ID MXL RG02
Format Type UDF 1.02
Volume Name TARZAN
Application id LBY CLONEDVD
Implementation id Stefan ID
Recording Date/Time (mm/dd/yyyy) 2/20/2004 23:39:14
Format Capacity 4.36GB(4.68GB)
Book Type DVD-R
Media Type DVD-R
Media Id Code Speed 4.0x 5540KBps
Available Write Descriptor CLV 4.0x 5540KBps
Available Write Descriptor CLV 2.0x 2770KBps
Write Strategy Speed 4.0x 5540KBps
2x Speed OPC beta 0A
2x Speed OPC power 0E
2x Write Strategy field 1 15 87 78 90
2x Write Strategy field 2 88 80 00 00 00 00
4x Speed OPC beta 05
4x Speed OPC power 16
4x Write Strategy field 1 0D 0F 0B 08
4x Write Strategy field 2 97 07 0E 0B
4x Write Strategy field 3 A4 00 24 00
4x Speed OPC beta multi-pulse 05
4x Speed OPC power multi-pulse 19
4x Write Strategy field 4 17 A8 89 75
4x Write Strategy field 5 C6 89 88 80 00 00
4x Write Strategy field 6 00 00 D0 00 00
Data area starting sector 30000h
Data area end sector 22E23Fh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1

00000000 00 6C 00 00 01 40 C1 FD 9E D8 52 00 02 86 0E 11 .l...@....R.....
00000010 87 89 80 00 03 4D 58 4C 20 52 47 00 04 30 32 00 .....MXL RG..02.
00000020 00 00 00 00 05 88 80 00 00 00 02 00 06 0A 0E 15 ................

Sold as Maxell DVD-R 4x
Scanned at 4x

The reading seems to be OK but it still show artifacts during the last 30 mins of the movie. Is my JVC dvd player needs to be replace or what?
Attached Images
File Type: png maxell-dvd-r4x-tarzan2x.png (12.6 KB, 2290 views)
Last edited by eap_44; 02-03-2004 at 04:50.
eap_44 is offline   Reply With Quote
Old 02-03-2004   #22 (permalink)
CD Freaks Junior Member

Join Date: Feb 2004
Location: Canada
Posts: 72
Maxell DVD-R 4x burned at 1x
811s (HSOP)

Same media as above.
Scanned at 4x.

This much more readable in my JVC dvd player. Isn't weird?
Attached Images
File Type: png maxell-dvd-r4x-tarzan1x.png (13.0 KB, 2270 views)
eap_44 is offline   Reply With Quote
Old 19-04-2004   #23 (permalink)
VAD
CD Freaks Senior Member

Join Date: Dec 2003
Location: IN, US
Posts: 252
Maxell DVD-R 4x burned at 4x
451s GSB7 4.0Gb Movie

Media info
Code:
Disc Regions are                                          1,2,3,4,5,6,7,8
Media code/Manufacturer ID                                       MXL RG02
Format Type                                                      UDF 1.02
Volume Name                                             REQUEIM_FOR_DREAM
Application id                                               LBY  CLONEDVD
Implementation id                                               Stefan ID
Recording Date/Time (mm/dd/yyyy)                       4/18/2004 22:52:26
Format Capacity                                            3.98GB(4.27GB)
Book Type                                                           DVD-R
Media Type                                                          DVD-R
Media Id Code Speed                                       4.0x   5540KBps
Available Write Descriptor                           CLV  4.0x   5540KBps
Available Write Descriptor                           CLV  2.0x   2770KBps
Write Strategy Speed                                        4.0x 5540KBps
Data area starting sector                                          30000h
Data area end sector                                              1FD17Fh
Linear Density                                                0.267um/bit
Track Density                                                0.74um/track
Number of Layers                                                        1
Meida ID
Code:
00000000 00 6C 00 00 01 40 C1 FD 9E D8 52 00 02 86 0E 11 .l...@....R.....
00000010 87 89 80 00 03 4D 58 4C 20 52 47 00 04 30 32 00 .....MXL RG..02.
00000020 00 00 00 00 05 88 80 00 00 00 02 00 06 0A 0E 15 ................
Burned with Nero 6.3.1.6
Sold as Maxell 4x, 15-pk spindle, Made in Japan
Scanned at 4x, ECC sum-8

VAD is offline   Reply With Quote
Old 08-05-2004   #2
