Old 22-09-2003   #1 (permalink)
Retired Moderator

dhc014's Avatar

Join Date: Jun 2002
Posts: 4,353
CMC DVD+R
Lite-ON LDW-401S, f/w ES0G, size: 4.38GB

Code:
                            Media Information
Disc Regions are                                          1,2,3,4,5,6,7,8
Media code/Manufacturer ID                                    CMC MAG R01
Format Type                                                      UDF 1.02
Volume Name                                               XXXXXXXXXXXXXXX
Application id
Implementation id                                              AHEAD  Nero
Recording Date/Time (mm/dd/yyyy)                       8/25/2003 22:35:15
Format Capacity                                            4.38GB(4.70GB)
Free Blocks                                                             0
Book Type                                                           DVD+R
Media Type                                                          DVD+R
Media Id Code Speed                                         2.4x 3324KBps
Available Write Descriptor                           CLV  2.4x   3324KBps
Data area starting sector                                          30000h
Data area end sector                                              23053Fh
Linear Density                                                0.267um/bit
Track Density                                                0.74um/track
Number of Layers                                                        1
Complete Media Code:
Code:
00000000 08 02 00 00 A1 0F 02 00 00 03 00 00 00 25 E3 5F .............%._
00000010 00 00 00 00 00 00 00 43 4D 43 20 4D 41 47 00 52 .......CMC MAG.R
00000020 30 31 00 38 23 54 37 0A 02 78 6E 02 C8 63 16 16 01.8#T7..xn..c..
00000030 0B 0B 0A 0A 01 1C 1E 0B 0C 12 12 01 00 00 00 00 ................
Philips branded 2.4x rated DVD+R discs manufactured by CMC Magnetics burned with Ahead Nero Burning ROM 6.0.0.15 (patched)

Note: The PO scale was reduced to allow better viewing of the data. You can still see the value of the large spike.

__________________
.:: Dave | http://dhc014.rpc1.org ::.
dhc014 is offline   Reply With Quote
Old 03-11-2003   #2 (permalink)
Retired Moderator

Join Date: Jun 2002
Location: Deadwood
Posts: 11,449
CMC DVD+R 2.4x burned at 2.4x
LDW-411S FS0B 4.4GB movie
Media Information
Region information N/A not a DVD-VIDEO
Media code/Manufacturer ID CMC MAG R01
Format Type UDF 1.02
Volume Name LORDOFTHERINGS
Application id
Implementation id AHEAD Nero
Recording Date/Time (mm/dd/yyyy) 9/30/2003 15:07:31
Format Capacity 4.36GB(4.68GB)
Book Type DVD+R
Media Type DVD+R
Media Id Code Speed 2.4x 3324KBps
Available Write Descriptor CLV 2.4x 3324KBps
Data area starting sector 30000h
Data area end sector 22E35Fh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1

08 02 00 00 A1 0F 02 00 00 03 00 00 00 26 05 3F .............&.?
00 00 00 00 00 00 00 43 4D 43 20 4D 41 47 00 52 .......CMC MAG.R
30 31 00 38 23 54 37 0A 02 78 6E 02 C8 63 16 16 01.8#T7..xn..c..
0B 0B 0A 0A 01 1C 1E 0B 0C 12 12 01 00 00 00 00 ................

Sold as Verbatim DataLife DVD+R 2.4x
not very good media, scanning at 4x fails, but scanning at 2.4x is OK
rdgrimes is offline   Reply With Quote
Old 08-11-2003   #3 (permalink)
CD Freaks Rookie

voodooutt's Avatar

Join Date: Oct 2003
Location: USA
Posts: 30
CMC DVD+R 2.4x burned at 2.4x
Lite-On LDW-401S FW-ES0G 4.36GB movie
Media Information
Disc Regions are 1,2,3,4,5,6,7,8
Media code/Manufacturer ID CMC MAG R01
Format Type UDF 1.02
Volume Name GODFATHER_PART1
Application id
Implementation id AHEAD Nero
Recording Date/Time (mm/dd/yyyy) 11/ 6/2003 18:25:27
Format Capacity 4.38GB(4.70GB)
Book Type DVD+R
Media Type DVD+R
Media Id Code Speed 2.4x 3324KBps
Available Write Descriptor CLV 2.4x 3324KBps
Data area starting sector 30000h
Data area end sector 23053Fh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1


00000000 08 02 00 00 A1 0F 02 00 00 03 00 00 00 25 F2 6F .............%.o
00000010 00 00 00 00 00 00 00 43 4D 43 20 4D 41 47 00 52 .......CMC MAG.R
00000020 30 31 00 38 23 54 37 0A 02 78 6E 02 C8 63 16 16 01.8#T7..xn..c..
00000030 0B 0B 0A 0A 01 1C 1E 0B 0C 12 12 01 00 00 00 00 ................

Verbatim Datalife 2.4x DVD+R
scanned at 2.4x

__________________
===============================
fug 'em all but six, they need pallbearers.
===============================
Last edited by rdgrimes; 08-11-2003 at 07:44.
voodooutt is offline   Reply With Quote
Old 14-11-2003   #4 (permalink)
Retired Moderator

Join Date: Jun 2002
Location: Deadwood
Posts: 11,449
CMC DVD+R 2.4x burned at 4x
Pioneer 106D 1.07 4.4GB movie
Media Information
Region information N/A not a DVD-VIDEO
Media code/Manufacturer ID CMC MAG R01
Format Type UDF 1.02
Volume Name LORDOFTHERINGS
Application id
Implementation id AHEAD Nero
Recording Date/Time (mm/dd/yyyy) 9/30/2003 15:07:31
Format Capacity 4.36GB(4.68GB)
Book Type DVD+R
Media Type DVD+R
Media Id Code Speed 2.4x 3324KBps
Available Write Descriptor CLV 2.4x 3324KBps
Data area starting sector 30000h
Data area end sector 22E35Fh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1

08 02 00 00 A1 0F 02 00 00 03 00 00 00 26 05 3F .............&.?
00 00 00 00 00 00 00 43 4D 43 20 4D 41 47 00 52 .......CMC MAG.R
30 31 00 38 23 54 37 0A 02 78 6E 02 C8 63 16 16 01.8#T7..xn..c..
0B 0B 0A 0A 01 1C 1E 0B 0C 12 12 01 00 00 00 00 ................

Sold as Verbatim DataLife (not Plus) DVD+R 2.4x
Scanned in LiteOn at 4x, ECC sum-8
rdgrimes is offline   Reply With Quote
Old 16-11-2003   #5 (permalink)
Retired Moderator

Join Date: Jun 2002
Location: Deadwood
Posts: 11,449
CMC DVD+R 2.4x burned at 2.4x
LDW-411S FS0F 4.4GB movie
Media Information
Region information N/A not a DVD-VIDEO
Media code/Manufacturer ID CMC MAG R01
Format Capacity 4.38GB(4.70GB)
Book Type DVD+R
Media Type DVD+R
Media Id Code Speed 2.4x 3324KBps
Available Write Descriptor CLV 2.4x 3324KBps
Data area starting sector 30000h
Data area end sector 23053Fh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1

08 02 00 00 A1 0F 02 00 00 03 00 00 00 26 05 3F .............&.?
00 00 00 00 00 00 00 43 4D 43 20 4D 41 47 00 52 .......CMC MAG.R
30 31 00 38 23 54 37 0A 02 78 6E 02 C8 63 16 16 01.8#T7..xn..c..
0B 0B 0A 0A 01 1C 1E 0B 0C 12 12 01 00 00 00 00 ................

sold as HP DVD+R 2.4x
scanned at 2.4x ECC sum-8
rdgrimes is offline   Reply With Quote
Old 16-11-2003   #6 (permalink)
Retired Moderator

Join Date: Jun 2002
Location: Deadwood
Posts: 11,449
CMC DVD+R 2.4x burned at 2.4x
Pioneer 106D 1.07 4.4GB movie
Media Information
Region information N/A not a DVD-VIDEO
Media code/Manufacturer ID CMC MAG R01
Format Capacity 4.38GB(4.70GB)
Book Type DVD+R
Media Type DVD+R
Media Id Code Speed 2.4x 3324KBps
Available Write Descriptor CLV 2.4x 3324KBps
Data area starting sector 30000h
Data area end sector 23053Fh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1

08 02 00 00 A1 0F 02 00 00 03 00 00 00 26 05 3F .............&.?
00 00 00 00 00 00 00 43 4D 43 20 4D 41 47 00 52 .......CMC MAG.R
30 31 00 38 23 54 37 0A 02 78 6E 02 C8 63 16 16 01.8#T7..xn..c..
0B 0B 0A 0A 01 1C 1E 0B 0C 12 12 01 00 00 00 00 ................

sold as HP DVD+R 2.4x
Scanned in LiteOn at 2.4x ECC sum-8
rdgrimes is offline   Reply With Quote
Old 09-12-2003   #7 (permalink)
Letiled Modelatol

Airhead's Avatar

Join Date: Feb 2002
Location: La Suède
Posts: 6,939

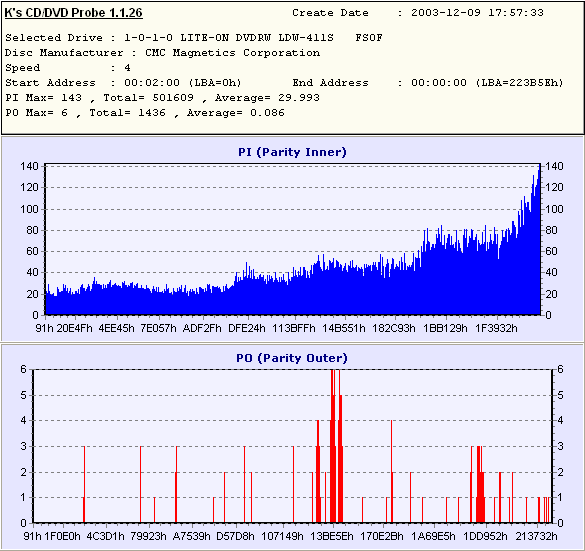

CMC DVD+R 2.4x burned at 2.4x
411S FS0F at 2.4x/4x, ECC set to 8. 4.3GB
Code:
Disc Regions are                                          1,2,3,4,5,6,7,8
Media code/Manufacturer ID                                    CMC MAG R01
Format Type                                                      UDF 1.02
Volume Name                                                          PORN
Application id
Implementation id                                              AHEAD  Nero
Recording Date/Time (mm/dd/yyyy)                      12/ 8/2003 17:44:11
Format Capacity                                            4.28GB(4.59GB)
Book Type                                                           DVD+R
Media Type                                                          DVD+R
Media Id Code Speed                                         2.4x 3324KBps
Available Write Descriptor                           CLV  2.4x   3324KBps
Data area starting sector                                          30000h
Data area end sector                                              223BBFh
Linear Density                                                0.267um/bit
Track Density                                                0.74um/track
Number of Layers                                                        1

00000000 08 02 00 00 A1 0F 02 00 00 03 00 00 00 25 3B BF .............%;.
00000010 00 00 00 00 00 00 00 43 4D 43 20 4D 41 47 00 52 .......CMC MAG.R
00000020 30 31 00 38 23 54 37 0A 02 78 6E 02 C8 63 16 16 01.8#T7..xn..c..
00000030 0B 0B 0A 0A 01 1C 1E 0B 0C 12 12 01 00 00 00 00 ................
Sold as Verbatim Datalife.
__________________
  • This line is currently vacant. Or Is It???
  • You want fast answers? Use our search. <-- Or else!
  • If you have not already, read our rules! <-- Or else again!
  • bcn_246: "Wales are shitty animals to, all they do is swim around and make funny noises that people cant hear."
  • You really should join us on IRC! IrcNet, #cdfreaks-int | Or go here
  • Fear my massive avatar history log! Not updated!
  • "But do they keep increasing in size like mine?" - kwkard
Last edited by Airhead; 09-12-2003 at 21:05.
Airhead is offline   Reply With Quote
Old 20-12-2003   #8 (permalink)
Letiled Modelatol

Airhead's Avatar

Join Date: Feb 2002
Location: La Suède
Posts: 6,939

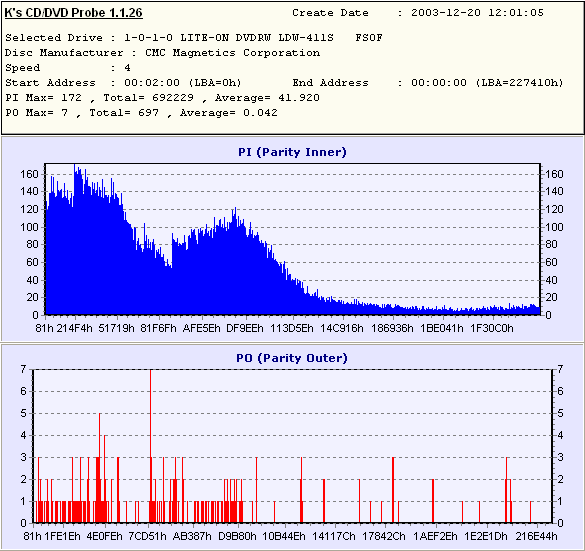

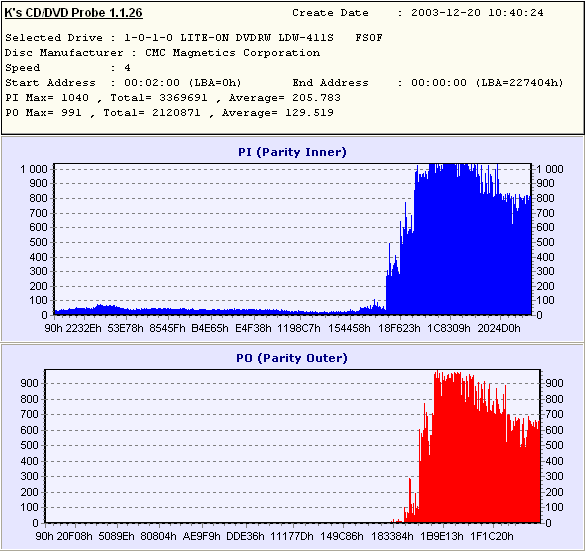

4x written at 4x
411S with FS0F, written and scanned at 4x, 4.11gb DVD-image, ECC sum set to 8.
Code:
Disc Regions are                                          1,2,3,4,5,6,7,8
Media code/Manufacturer ID                                    CMC MAG F01
Format Type                                                      UDF 1.02
Volume Name                                                          TWAT
Application id
Implementation id                                                 mkisofs
Recording Date/Time (mm/dd/yyyy)                      11/27/2003  0:24:06
Format Capacity                                            4.31GB(4.62GB)
Book Type                                                           DVD+R
Media Type                                                          DVD+R
Media Id Code Speed                                         2.4x 3324KBps
Available Write Descriptor                           CLV  4.0x   5540KBps
Available Write Descriptor                           CLV  2.4x   3324KBps
Data area starting sector                                          30000h
Data area end sector                                              22743Fh
Linear Density                                                0.267um/bit
Track Density                                                0.74um/track
Number of Layers                                                        1


00000000 08 02 00 00 A1 0F 02 00 00 03 00 00 00 25 74 3F .............%t?
00000010 00 00 00 00 00 00 01 43 4D 43 20 4D 41 47 00 46 .......CMC MAG.F
00000020 30 31 00 38 23 54 37 10 02 48 71 02 8C 69 16 16 01.8#T7..Hq..i..
00000030 0B 0B 0A 0A 01 1D 1E 0C 0C 12 12 01 00 00 00 00 ................
Those Verbatims were obviously great quality by CMC-standards
Here's some good ol' CMC-quality. Scan froze at 64% and of course my DVD-player spits it out. Sold as Philips 4x.

__________________
  • This line is currently vacant. Or Is It???
  • You want fast answers? Use our search. <-- Or else!
  • If you have not already, read our rules! <-- Or else again!
  • bcn_246: "Wales are shitty animals to, all they do is swim around and make funny noises that people cant hear."
  • You really should join us on IRC! IrcNet, #cdfreaks-int | Or go here
  • Fear my massive avatar history log! Not updated!
  • "But do they keep increasing in size like mine?" - kwkard
Airhead is offline   Reply With Quote
Old 20-12-2003   #9 (permalink)
Letiled Modelatol

Airhead's Avatar

Join Date: Feb 2002
Location: La Suède
Posts: 6,939
4x written at 2.4x
411S with FS0F, written at 2.4x and scanned at 4x, 4.11gb DVD-image, ECC sum set to 8.
Code:
Disc Regions are                                          1,2,3,4,5,6,7,8
Media code/Manufacturer ID                                    CMC MAG F01
Format Type                                                      UDF 1.02
Volume Name                                                          TWAT
Application id
Implementation id                                                 mkisofs
Recording Date/Time (mm/dd/yyyy)                      11/27/2003  0:24:06
Format Capacity                                            4.31GB(4.62GB)
Book Type                                                           DVD+R
Media Type                                                          DVD+R
Media Id Code Speed                                         2.4x 3324KBps
Available Write Descriptor                           CLV  4.0x   5540KBps
Available Write Descriptor                           CLV  2.4x   3324KBps
Data area starting sector                                          30000h
Data area end sector                                              22743Fh
Linear Density                                                0.267um/bit
Track Density                                                0.74um/track
Number of Layers                                                        1


00000000 08 02 00 00 A1 0F 02 00 00 03 00 00 00 25 74 3F .............%t?
00000010 00 00 00 00 00 00 01 43 4D 43 20 4D 41 47 00 46 .......CMC MAG.F
00000020 30 31 00 38 23 54 37 10 02 48 71 02 8C 69 16 16 01.8#T7..Hq..i..
00000030 0B 0B 0A 0A 01 1D 1E 0C 0C 12 12 01 00 00 00 00 ................
Same thing as above written at 2.4x. Only difference is the scan now completes, my DVD-player of course still spits em out when reaching PI and PO's in the thousands. Funny thing these are claimed by Philips to be "extra compatible" with DVD-players and recorders... Package says "Made in Taiwan" in English and French, package is black/green. Avoid!

__________________
  • This line is currently vacant. Or Is It???
  • You want fast answers? Use our search. <-- Or else!
  • If you have not already, read our rules! <-- Or else again!
  • bcn_246: "Wales are shitty animals to, all they do is swim around and make funny noises that people cant hear."
  • You really should join us on IRC! IrcNet, #cdfreaks-int | Or go here
  • Fear my massive avatar history log! Not updated!
  • "But do they keep increasing in size like mine?" - kwkard
Airhead is offline   Reply With Quote
Old 20-12-2003   #10 (permalink)
Letiled Modelatol

Airhead's Avatar

Join Date: Feb 2002
Location: La Suède
Posts: 6,939
411S with FS0F, written at 2.4x and scanned at 4x, 4.11gb DVD-image, ECC sum set to 8.
Code:
Disc Regions are                                          1,2,3,4,5,6,7,8
Media code/Manufacturer ID                                    CMC MAG F01
Format Type                                                      UDF 1.02
Volume Name                                                          TWAT
Application id
Implementation id                                                 mkisofs
Recording Date/Time (mm/dd/yyyy)                      11/27/2003  0:24:06
Format Capacity                                            4.31GB(4.62GB)
Book Type                                                           DVD+R
Media Type                                                          DVD+R
Media Id Code Speed                                         2.4x 3324KBps
Available Write Descriptor                           CLV  4.0x   5540KBps
Available Write Descriptor                           CLV  2.4x   3324KBps
Data area starting sector                                          30000h
Data area end sector                                              22743Fh
Linear Density                                                0.267um/bit
Track Density                                                0.74um/track
Number of Layers                                                        1


00000000 08 02 00 00 A1 0F 02 00 00 03 00 00 00 25 74 3F .............%t?
00000010 00 00 00 00 00 00 01 43 4D 43 20 4D 41 47 00 46 .......CMC MAG.F
00000020 30 31 00 38 23 54 37 10 02 48 71 02 8C 69 16 16 01.8#T7..Hq..i..
00000030 0B 0B 0A 0A 01 1D 1E 0C 0C 12 12 01 00 00 00 00 ................
Well now I thought I'd try copying my DVD one final time and look what turned up, a readable disc! It's not perfect but it works. Note this disc is just the opposite of the others, error count are higher in the beginning and falls out later. This is the very same Philips as the previous two, this proves that CMC still have not grasped the meaning of the word "quality-control".

__________________
  • This line is currently vacant. Or Is It???
  • You want fast answers? Use our search. <-- Or else!
  • If you have not already, read our rules! <-- Or else again!
  • bcn_246: "Wales are shitty animals to, all they do is swim around and make funny noises that people cant hear."
  • You really should join us on IRC! IrcNet, #cdfreaks-int | Or go here
  • Fear my massive avatar history log! Not updated!
  • "But do they keep increasing in size like mine?" - kwkard
Airhead is offline   Reply With Quote
Old 05-01-2004   #11 (permalink)
CDFreaks Resident

cnlson's Avatar

Join Date: Oct 2003
Posts: 2,224
CMC DVD+R 2.4x burned at 2.4x
411s FSOF written 2.4x movie bkup 4gig
--------------------------------------------------------------------------
Unique Disc Identifier : [DVD+R:CMC MAG-R01-000]
--------------------------------------------------------------------------
Disc Type : [DVD+R]
Manufacturer ID : [CMC MAG]
Media Type ID : [R01]
Product Revision : [Not Specified]
Disc Application Code : [General Purpose]
Recording Speeds : [2.4x]
Blank Disc Capacity : [Not Supported By Method 2]
--------------------------------------------------------------------------
[DVD Identifier - http://DVD.Identifier.CDfreaks.com]
--------------------------------------------------------------------------

0000 : a1 0f 02 00 00 03 00 00 00 25 99 ff 00 00 00 00 .........%......
0010 : 00 00 00 43 4d 43 20 4d 41 47 00 52 30 31 00 38 ...CMC MAG.R01.8
0020 : 23 54 37 0a 02 78 6e 02 c8 63 16 16 0b 0b 0a 0a #T7..xn..c......
0030 : 01 1c 1e 0b 0c 12 12 01 00 00 00 00 00 00 00 00 ................

scan 4x ecc sum 8
Plays fine in everything i have tried it in.
apex 1200 panasonic rv32 48161hx2
labeled as a khypermedia +r from a 10 pk free after rebate on thanksgiving.
Attached Images
File Type: png r01.png (12.7 KB, 4530 views)
cnlson is offline   Reply With Quote
Old 11-01-2004   #12 (permalink)
New on Forum

Join Date: Dec 2003
Posts: 27
CMC DVD+R 2.4x burned at ?
LiteOn LDW-811S HS0K
Region information N/A not a DVD-VIDEO
Media code/Manufacturer ID CMC MAG F01
Format Type UDF 2.01
Volume Name
Application id
Implementation id AHEAD Nero
Recording Date/Time (mm/dd/yyyy) 1/11/2004 17:14:53
Format Capacity 4.10GB(4.41GB)
Book Type DVD-ROM
Media Type DVD+R
Media Id Code Speed 2.4x 3324KBps
Data area starting sector 30000h
Data area end sector 20D29Fh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1
scan 4x ecc sum 8 ,Philips dvdr+
Attached Images
File Type: png cmc + tngs6.png (13.4 KB, 4536 views)
Last edited by rdgrimes; 11-01-2004 at 18:26.
Anderz is offline   Reply With Quote
Old 21-01-2004   #13 (permalink)
Retired Moderator

Join Date: Jun 2002
Location: Deadwood
Posts: 11,449
CMC DVD+R 2.4x burned at 2.4x
NEC 2500A 1.06 4.4GB movie
Media Information
Region information N/A not a DVD-VIDEO
Media code/Manufacturer ID CMC MAG R01
Format Type UDF 1.02
Volume Name LORDOFTHERINGS
Application id
Implementation id AHEAD Nero
Recording Date/Time (mm/dd/yyyy) 9/30/2003 15:07:31
Format Capacity 4.36GB(4.68GB)
Book Type DVD+R
Media Type DVD+R
Media Id Code Speed 2.4x 3324KBps
Available Write Descriptor CLV 2.4x 3324KBps
Data area starting sector 30000h
Data area end sector 22E35Fh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1
08 02 00 00 A1 0F 02 00 00 03 00 00 00 25 E3 5F .............%._
00 00 00 00 00 00 00 43 4D 43 20 4D 41 47 00 52 .......CMC MAG.R
30 31 00 38 23 54 37 0A 02 78 6E 02 C8 63 16 16 01.8#T7..xn..c..
0B 0B 0A 0A 01 1C 1E 0B 0C 12 12 01 00 00 00 00 ................

Verbatim DataLife DVD+R 2.4x
Scanned at 4x ECC sum-8
rdgrimes is offline   Reply With Quote
Old 26-01-2004   #14 (permalink)
New on Forum

Join Date: Jan 2004
Location: MN, USA
Posts: 3
CMC 4x DVD+R burned at 4x
LiteOn LDW851S - f/w GS08 (never flashed)
Sorry guys, missed the CMC thread - Disc is TDK

Media Information
Disc Regions are 1,2,3,4,5,6,7,8
Media code/Manufacturer ID CMC MAG F01
Format Type UDF 1.02
Volume Name KILL_BILL
Application id
Implementation id AHEAD Nero
Recording Date/Time (mm/dd/yyyy) 1/26/2004 9:19:19
Format Capacity 3.92GB(4.21GB)
Book Type DVD+R
Media Type DVD+R
Media Id Code Speed 2.4x 3324KBps
Available Write Descriptor CLV 4.0x 5540KBps
Available Write Descriptor CLV 2.4x 3324KBps
Data area starting sector 30000h
Data area end sector 1F571Fh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1

00000000 08 02 00 00 A1 0F 02 00 00 03 00 00 00 22 57 1F ............."W.
00000010 00 00 00 00 00 00 01 43 4D 43 20 4D 41 47 00 46 .......CMC MAG.F
00000020 30 31 00 38 23 54 37 10 02 48 71 02 8C 69 16 16 01.8#T7..Hq..i..
00000030 0B 0B 0A 0A 01 1D 1E 0C 0C 12 12 01 00 00 00 00 ................
Attached Images
File Type: png kill bill.png (11.8 KB, 4357 views)
__________________
~Vicosis

*Knowledge is Power*
Last edited by vicosis; 26-01-2004 at 17:39.
vicosis is offline   Reply With Quote
Old 01-02-2004   #15 (permalink)
CD Freaks Junior Member

Join Date: Oct 2002
Location: Russia
Posts: 89
CMC 4x burned at 4x
LDW-811S, HS0K, MK4, DVD-Video, Nero 6.3.02
Media Information
Drive Type = DVD DUAL
Disc Type = DVD+R (Single Layer)
Disc MID = 43 4D 43 20 4D 41 47 00 (CMC MAG.)
Disc TID = 46 30 31 (F01)
Nominal Capacity = 4.38GB
Manufacturer Maybe = CMC Magnetics Corporation
SMART-BURN Speed Limit = 4.0X (Write)

--------------------------------------------------------------------------
Unique Disc Identifier : [DVD+R:CMC MAG-F01-000]
--------------------------------------------------------------------------
Disc Type : [DVD+R]
Manufacturer ID : [CMC MAG]
Media Type ID : [F01]
Product Revision : [Not Specified]
Disc Application Code : [General Purpose]
Recording Speeds : [2.4x - 4x]

Sold as Memorex 4x, cake box, silver surface.
Scanned at LDW-811S, HS0K, MK4 at 4x/8ECC
Attached Images
File Type: png w4_hs0k4_r4_hs0k_8ecc.png (20.9 KB, 4288 views)
abgm is offline   Reply With Quote
Old 22-02-2004   #16 (permalink)
New on Forum

Join Date: Apr 2003
Location: Poland
Posts: 28
CMC 4x burnet at 4x
Lite-On LDW-401S@811S HS0P mod4
Media Information
Region information N/A not a DVD-VIDEO
Media code/Manufacturer ID CMC MAG F01
Format Capacity Not Formatted
Free Blocks 405405696
Free Capacity 4.38GB(4.70GB)
Book Type DVD+R
Media Type DVD+R
Media Id Code Speed 2.4x 3324KBps
Available Write Descriptor CLV 4.0x 5540KBps
Available Write Descriptor CLV 2.4x 3324KBps
Data area starting sector 30000h
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1

00000000 08 02 00 00 A1 0F 02 00 00 03 00 00 00 00 00 00 ................
00000010 00 00 00 00 00 00 01 43 4D 43 20 4D 41 47 00 46 .......CMC MAG.F
00000020 30 31 00 38 23 54 37 10 02 48 71 02 8C 69 16 16 01.8#T7..Hq..i..
00000030 0B 0B 0A 0A 01 1D 1E 0C 0C 12 12 01 00 00 00 00 ................

Sold as MEMOREX 1X-4X DVD+R 4.7GB
Scanned with Lite-On LDW-401s@811S F/W HS0P Mod 4 at 4X CLV, PI/PO sum set to 8 ECC
Attached Images
File Type: png memorex dvd+r 4x hs0p ecc8.png (11.6 KB, 4155 views)
kowanski is offline   Reply With Quote
Old 03-03-2004   #17 (permalink)
New on Forum

calaca's Avatar

Join Date: Feb 2004
Location: Somewhere in the midwest
Posts: 23
CMC 2.4X burned @ 2.4x
LiteOn 451S@851S using GS0C f/w, 4.36 GB movie

Media Info:
Code:
                            Media Information
Region information                                    N/A not a DVD-VIDEO
Media code/Manufacturer ID                                    CMC MAG R01
Format Type                                                      UDF 1.02
Volume Name                                                        MOVIE
Application id
Implementation id                                               DVD Shrink
Recording Date/Time (mm/dd/yyyy)                       3/ 2/2004 17:29:19
Format Capacity                                            4.36GB(4.68GB)
Book Type                                                         DVD-RAM
Media Type                                                          DVD+R
Media Id Code Speed                                               Unknown
Available Write Descriptor                          ZCLV  2.4x   3324KBps
Data area starting sector                                          81010h
Data area end sector                                              22D83Fh
Linear Density                                                0.267um/bit
Track Density                                                0.80um/track
Number of Layers                                                        1
Media ID:
Code:
00000000 08 02 00 00 A1 0F 02 00 00 03 00 00 00 26 05 3F .............&.?
00000010 00 00 00 00 00 00 00 43 4D 43 20 4D 41 47 00 52 .......CMC MAG.R
00000020 30 31 00 38 23 54 37 0A 02 78 6E 02 C8 63 16 16 01.8#T7..xn..c..
00000030 0B 0B 0A 0A 01 1C 1E 0B 0C 12 12 01 00 00 00 00 ................
Sold as Philips DVD+R 2.4x (25pk from OfficeDepot), Made in Taiwan (DVDRISO2/721)
Scanned on 451S@851S using 4x/8ECC

__________________

Secondary IDE Channel
M: LiteON 52x32x52 CD-RW QS0E (Master•Primary CD Burner)
N: LiteON XJ-HD166S DVD-ROM DS1C (Slave•Primary DVD Player/Ripper)
Silicon Image UATA/133 Card
O: LiteON LDW-451@851 GS0F *speed hacked* (Master•Secondary DVD Burner/Ripper)
P: NEC ND-2500A 1.062003121900 (Slave•Primary DVD Burner)
calaca is offline   Reply With Quote
Old 03-03-2004   #18 (permalink)
New on Forum

calaca's Avatar

Join Date: Feb 2004
Location: Somewhere in the midwest
Posts: 23
CMC 2.4x burned @ 2.4x
NEC2500A f/w 1.06, 4.36GB Movie

Media Info:
Code:
Media Information
Region information                                    N/A not a DVD-VIDEO
Media code/Manufacturer ID                                    CMC MAG R01
Format Type                                                      UDF 1.02
Volume Name                                                        MOVIE
Application id
Implementation id                                               DVD Shrink
Recording Date/Time (mm/dd/yyyy)                       3/ 2/2004 17:29:19
Format Capacity                                            4.36GB(4.68GB)
Book Type                                                         DVD-RAM
Media Type                                                          DVD+R
Media Id Code Speed                                               Unknown
Available Write Descriptor                          ZCLV  2.4x   3324KBps
Data area starting sector                                          81010h
Data area end sector                                              22D83Fh
Linear Density                                                0.267um/bit
Track Density                                                0.80um/track
Number of Layers                                                        1
Media ID:
Code:
00000000 08 02 00 00 A1 0F 02 00 00 03 00 00 00 26 05 3F .............&.?
00000010 00 00 00 00 00 00 00 43 4D 43 20 4D 41 47 00 52 .......CMC MAG.R
00000020 30 31 00 38 23 54 37 0A 02 78 6E 02 C8 63 16 16 01.8#T7..xn..c..
00000030 0B 0B 0A 0A 01 1C 1E 0B 0C 12 12 01 00 00 00 00 ................
Sold as Philips DVD+R 2.4x (25pk from OfficeDepot), Made in Taiwan (DVDRISO2/721)
Scanned on 451S@851S using 4x/8ECC
__________________

Secondary IDE Channel
M: LiteON 52x32x52 CD-RW QS0E (Master•Primary CD Burner)
N: LiteON XJ-HD166S DVD-ROM DS1C (Slave•Primary DVD Player/Ripper)
Silicon Image UATA/133 Card
O: LiteON LDW-451@851 GS0F *speed hacked* (Master•Secondary DVD Burner/Ripper)
P: NEC ND-2500A 1.062003121900 (Slave•Primary DVD Burner)
calaca is offline   Reply With Quote
Old 15-03-2004   #19 (permalink)
Retired Moderator

Join Date: Jun 2002
Location: Deadwood
Posts: 11,449
CMC DVD+R 4x burned at 8x
LiteOn 401@811 HS0P 4.4GB movie
Media Information
Region information N/A not a DVD-VIDEO
Media code/Manufacturer ID CMC MAG F01
Format Type UDF 1.02
Volume Name ZOOT_ALBERTA
Application id
Implementation id AHEAD Nero
Recording Date/Time (mm/dd/yyyy) 3/14/2004 21:00:28
Format Capacity 4.36GB(4.68GB)
Book Type DVD+R
Media Type DVD+R
Media Id Code Speed 2.4x 3324KBps
Available Write Descriptor CLV 8.0x 11080KBps
Available Write Descriptor CLV 6.0x 8310KBps
Available Write Descriptor CLV 4.0x 5540KBps
Available Write Descriptor CLV 2.4x 3324KBps
Data area starting sector 30000h
Data area end sector 22E21Fh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1
08 02 00 00 A1 0F 02 00 00 03 00 00 00 25 E2 1F .............%..
00 00 00 00 00 00 01 43 4D 43 20 4D 41 47 00 46 .......CMC MAG.F
30 31 00 38 23 54 37 10 02 48 71 02 8C 69 16 16 01.8#T7..Hq..i..
0B 0B 0A 0A 01 1D 1E 0C 0C 12 12 01 00 00 00 00 ................

Sold as HP DVD+R 4x
Scanned at 4x, ECC sum-8
Speed modded HS0P firmware

Last edited by rdgrimes; 15-03-2004 at 18:14.
rdgrimes is offline   Reply With Quote
Old 15-03-2004   #20 (permalink)
Retired Moderator

Join Date: Jun 2002
Location: Deadwood
Posts: 11,449
CMC DVD+R 4x burned at 4x
NEC 2500A 1.06 4.4GB movie
Media Information
Region information N/A not a DVD-VIDEO
Media code/Manufacturer ID CMC MAG F01
Format Type UDF 1.02
Volume Name ZOOT_ALBERTA
Application id
Implementation id AHEAD Nero
Recording Date/Time (mm/dd/yyyy) 3/14/2004 21:09:45
Format Capacity 4.36GB(4.68GB)
Book Type DVD+R
Media Type DVD+R
Media Id Code Speed 2.4x 3324KBps
Available Write Descriptor CLV 4.0x 5540KBps
Available Write Descriptor CLV 2.4x 3324KBps
Data area starting sector 30000h
Data area end sector 22E21Fh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1
08 02 00 00 A1 0F 02 00 00 03 00 00 00 25 E2 1F .............%..
00 00 00 00 00 00 01 43 4D 43 20 4D 41 47 00 46 .......CMC MAG.F
30 31 00 38 23 54 37 10 02 48 71 02 8C 69 16 16 01.8#T7..Hq..i..
0B 0B 0A 0A 01 1D 1E 0C 0C 12 12 01 00 00 00 00 ................

Sold as HP DVD+R 4x
Scanned at 4x, ECC sum-8
rdgrimes is offline   Reply With Quote
Old 15-03-2004   #21 (permalink)
Retired Moderator

Join Date: Jun 2002
Location: Deadwood
Posts: 11,449
CMC DVD+R 4x burned at 4x
Pioneer 106D 1.07 4.4GB movie
Media Information
Region information N/A not a DVD-VIDEO
Media code/Manufacturer ID CMC MAG F01
Format Type UDF 1.02
Volume Name ZOOT_ALBERTA
Application id
Implementation id AHEAD Nero
Recording Date/Time (mm/dd/yyyy) 3/14/2004 21:26:46
Format Capacity 4.36GB(4.68GB)
Book Type DVD+R
Media Type DVD+R
Media Id Code Speed 2.4x 3324KBps
Available Write Descriptor CLV 4.0x 5540KBps
Available Write Descriptor CLV 2.4x 3324KBps
Data area starting sector 30000h
Data area end sector 22E21Fh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1
08 02 00 00 A1 0F 02 00 00 03 00 00 00 26 05 3F .............&.?
00 00 00 00 00 00 01 43 4D 43 20 4D 41 47 00 46 .......CMC MAG.F
30 31 00 38 23 54 37 10 02 48 71 02 8C 69 16 16 01.8#T7..Hq..i..
0B 0B 0A 0A 01 1D 1E 0C 0C 12 12 01 00 00 00 00 ................

Sold as HP DVD+R 4x
SCanned at 4x, ECC sum-8
rdgrimes is offline   Reply With Quote
Old 21-03-2004   #22 (permalink)
New on Forum

N|KoN's Avatar

Join Date: Mar 2004
Location: Australia
Posts: 8
CMC DVD+R 4x burned at 4x
Liteon LDW-401s@811s vU Beta Mod HS0K
Code:
                            Media Information
Disc Regions are                                          1,2,3,4,5,6,7,8
Media code/Manufacturer ID                                    CMC MAG F01
Format Type                                                      UDF 1.02
Volume Name                                                     The Hours
Application id                                               LBY  CLONEDVD
Implementation id                                               Stefan ID
Recording Date/Time (mm/dd/yyyy)                       3/20/2004 10:50:45
Format Capacity                                            4.36GB(4.68GB)
Book Type                                                         DVD-ROM
Media Type                                                          DVD+R
Media Id Code Speed                                         2.4x 3324KBps
Data area starting sector                                          30000h
Data area end sector                                              22E23Fh
Linear Density                                                0.267um/bit
Track Density                                                0.74um/track
Number of Layers                                                        1

01 0f 01 00 00 03 00 00  00 25 e2 3f 00 00 00 00   .........%.?....
00 00 01 43 4d 43 20 4d  41 47 00 46 30 31 00 38   ...CMC MAG.F01.8
23 54 37 10 02 48 71 02  8c 69 16 16 0b 0b 0a 0a   #T7..Hq..i......
Sold as TEAC DVD+R 4x
CloneDVD 1.3.9.8

UNSCALED

SCALED
Last edited by rdgrimes; 21-03-2004 at 15:30.
N|KoN is offline   Reply With Quote
